MOVIE of UVCS Slit on LASCO Images
CME 19970413
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 19970413.161226.p257g |
16:12 |
269 |
391 |
3.9 |
------- |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d97.04.13.14:17:42.ovi.dat |
225 |
14:18:37 |
14:23:37 |
1.50 |
83 |
100 |
| 14:25:24 |
14:33:44 |
1.75 |
83 |
100 | ||
| 14:35:43 |
14:47:23 |
2.00 |
83 |
100 | ||
| 14:49:30 |
15:04:30 |
2.25 |
83 |
100 |

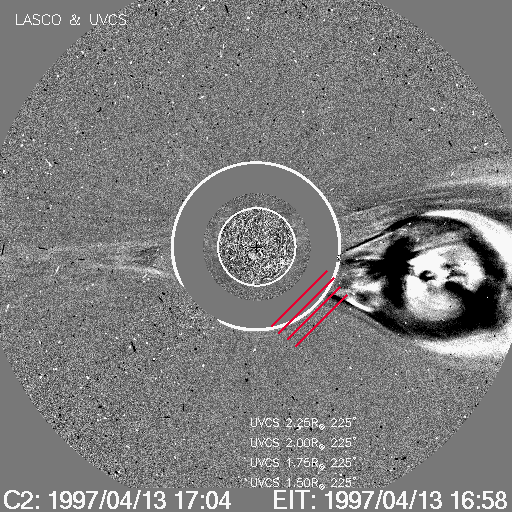

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d97.04.13.14:17:42.ovi.dat |
1025.40 |
1043.20 |
| 1010.10 |
1018.40 |
|
| 998.300 |
1000.60 |
|
| 1229.40 |
1231.60 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 1997/04/13 14:25 | 1.72 |
OVI1032 OVI1038 | ||
| Images |

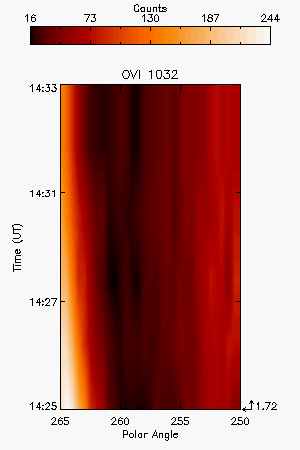

| Intensity Images |
||
| Interpretation |
| Front | No |
| Void | No |
| Shock | No |
| Current Sheet | No |
| Prominence | No |
| Flare O VI | No |
| Leg | Yes |
| Helix | No |
| Comments |
Leg observed at the edge of UVCS field of view
