UVCS CME Catalog: 19971101

CME 19971101

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID	Time (UT)	PA (deg)	Speed (km/sec)	Acceleration (m/sec²)	Mass (g)	Type II RB	X Flare
19971101.201159.p274g	20:11	271	272	-23.1*	7.5e+14*	No	Yes

Table 2 - UVCS Observation Sequence

FITS filename	PA (deg)	T_i(UT)	T_f (UT)	Height (R_sun)	Slit W. (arcsec)	Exp. Time (sec)
d97.11.01.19:07:37.lya.dat	290	19:12:21	21:32:21	2.20	14	600
	300	21:37:03	00:17:03	2.20	14	600
d97.11.02.00:27:14.lya.dat	270	00:28:06	00:36:26	1.50	14	100
d97.11.01.19:07:37.ovi.dat	290	19:12:19	21:32:19	2.20	56	600
	300	21:37:03	00:17:03	2.20	56	600
d97.11.02.00:27:14.ovi.dat	270	00:28:05	00:36:25	1.50	83	100

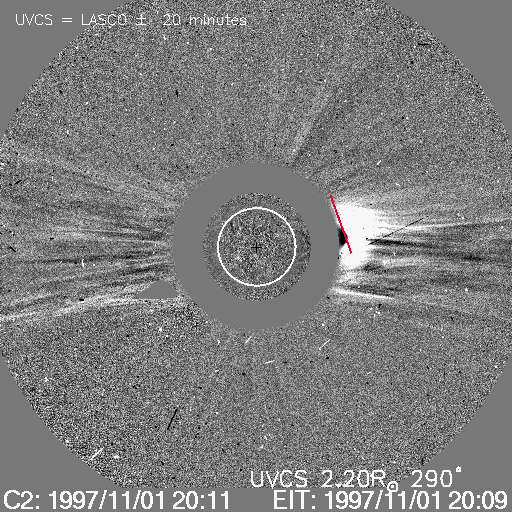

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename	Wave Min (A)	Wave Max (A)
d97.11.01.19:07:37.lya.dat	1236.70	1245.00
	1201.90	1231.70
	1194.00	1199.50
d97.11.02.00:27:14.lya.dat	1210.40	1221.80
	1205.40	1208.40
	1195.20	1198.20
	1174.50	1177.90
d97.11.01.19:07:37.ovi.dat	996.400	1046.50
	965.400	979.700
	1183.20	1196.40
d97.11.02.00:27:14.ovi.dat	1023.40	1043.60
	1224.60	1243.30
	1014.20	1022.60
	1244.00	1251.70

Table 4 - UV Properties

First Obs.	Max blue-shift (km/sec)	Max red-shift (km/sec)	Detected at (R_sun)	Lines
1997/11/01 19:53	60		2.21, 1.47, 1.71, 1.94, 2.28, 2.72, 3.15	HILya1216 HILyb1026 CIII977 OVI1032 OVI1038 FeXII1242

Images

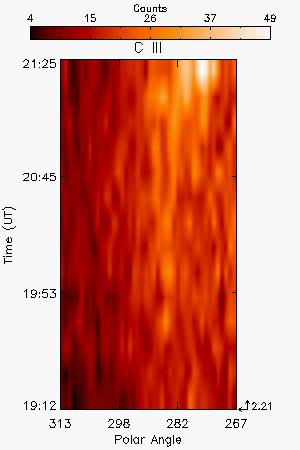

Intensity Images

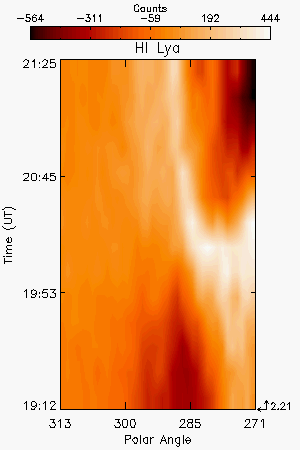

HI Ly-alpha intensity difference

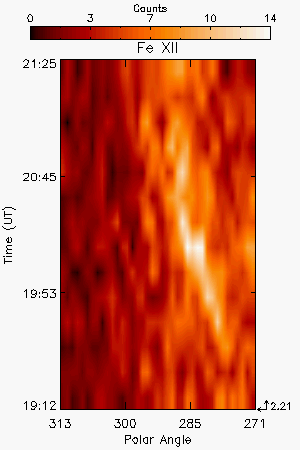

Fe XII intensity 1242

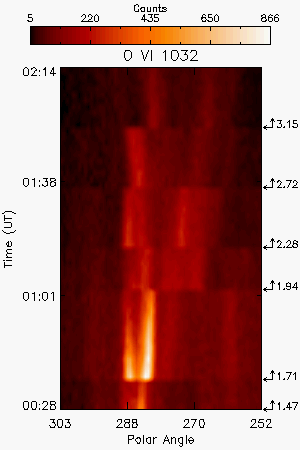

OVI 1032 intensity

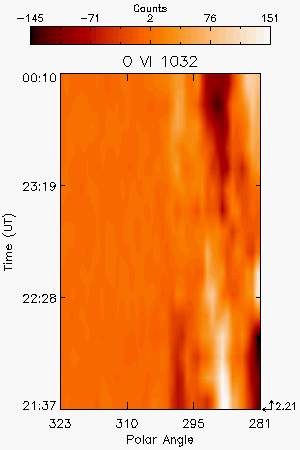

OVI 1032 intensity difference

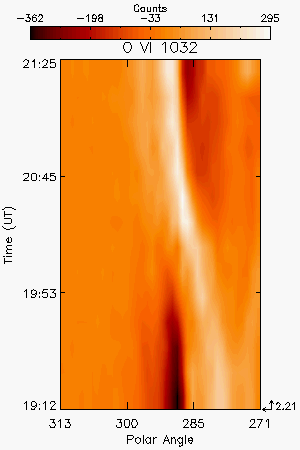

OVI 1032 intensity difference

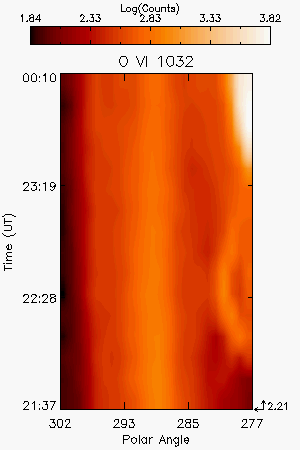

OVI 1032 intensity

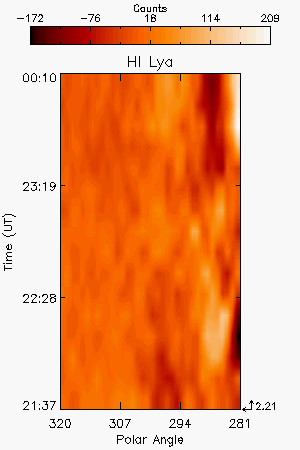

HI Ly-alpha intensity difference

Interpretation

Front	Yes
Void	Yes
Shock	No
Current Sheet	No
Prominence	Yes
Flare O VI	No
Leg	No
Helix	?

Comments

note change of PA during first FITS file. .ovi files also show CME

Last Update Wed Jun 17 19:32:12 2009
