UVCS CME Catalog: 19971212

CME 19971212

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID	Time (UT)	PA (deg)	Speed (km/sec)	Acceleration (m/sec²)	Mass (g)	Type II RB	X Flare
19971212.012708.p268g	01:27	291	211	-2.8*	2.9e+14	No	No

Table 2 - UVCS Observation Sequence

FITS filename	PA (deg)	T_i(UT)	T_f (UT)	Height (R_sun)	Slit W. (arcsec)	Exp. Time (sec)
d97.12.11.22:16:01.lya.dat	310	22:20:40	01:17:20	1.70	13	200
d97.12.12.01:27:35.lya.dat	270	01:28:25	01:36:45	1.50	13	100
		01:38:39	02:03:39	1.70	13	100
	270	02:06:29	02:18:09	1.90	13	100
		02:20:15	02:36:55	2.20	13	100
	270	02:39:19	02:55:59	2.60	13	100
		02:58:19	03:14:59	3.00	13	100
d97.12.12.03:21:15.lya.dat	315	03:22:06	03:27:06	1.50	13	100
		03:28:51	03:37:11	1.75	13	100
	315	03:39:05	03:50:45	2.00	13	100
		03:52:54	04:07:54	2.25	13	100
d97.12.11.22:16:01.ovi.dat	310	22:17:14	01:17:14	1.70	9	200
d97.12.12.01:27:35.ovi.dat	270	01:28:25	01:36:45	1.50	83	100
		01:38:39	02:03:39	1.70	83	100
	270	02:06:27	02:18:07	1.90	83	100
		02:20:14	02:36:54	2.20	83	100
	270	02:39:19	02:55:59	2.60	83	100
		02:58:19	03:14:59	3.00	83	100
d97.12.12.03:21:15.ovi.dat	315	03:22:06	03:27:06	1.50	83	100
		03:28:51	03:37:11	1.75	83	100
	315	03:39:05	03:50:45	2.00	83	100
		03:52:52	04:07:52	2.25	83	100

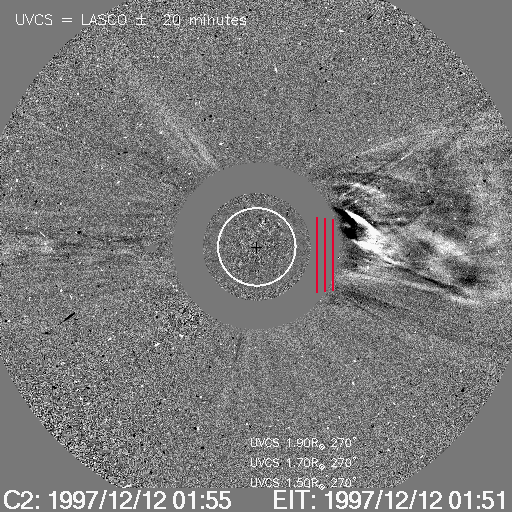

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename	Wave Min (A)	Wave Max (A)
d97.12.11.22:16:01.lya.dat	1302.80	1308.40
	1235.90	1245.40
	1203.70	1224.40
	1192.10	1201.00
d97.12.12.01:27:35.lya.dat	1210.40	1221.80
	1205.50	1208.50
	1195.00	1198.50
d97.12.12.03:21:15.lya.dat	1210.40	1221.80
	1205.50	1208.50
	1195.00	1198.50
d97.12.11.22:16:01.ovi.dat	1022.40	1043.50
	997.500	1000.60
	975.600	979.000
	971.100	974.500
	1188.00	1191.10
d97.12.12.01:27:35.ovi.dat	1022.70	1043.60
	1005.40	1013.80
	1235.40	1243.10
d97.12.12.03:21:15.ovi.dat	1022.70	1043.60
	1005.40	1013.80
	1235.40	1243.10

Table 4 - UV Properties

First Obs.	Max blue-shift (km/sec)	Max red-shift (km/sec)	Detected at (R_sun)	Lines
1997/12/12 00:03	150		1.63,1.48,1.72,1.95,2.29,2.74,3.17	HILya1216 HILyb1026 CIII977 OVI1032

Images

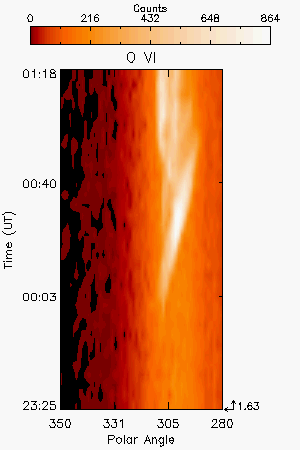

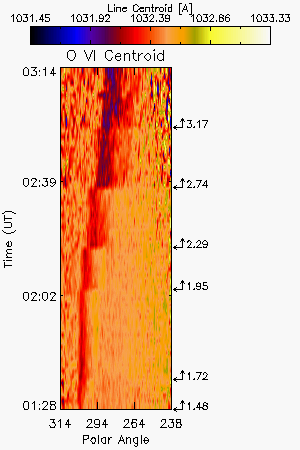

Intensity Images

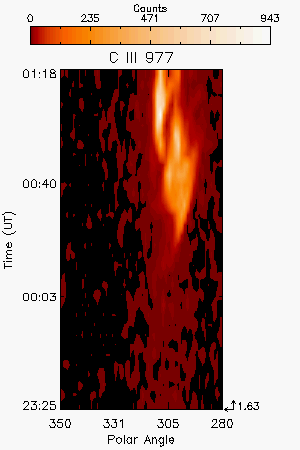

C III Intensity

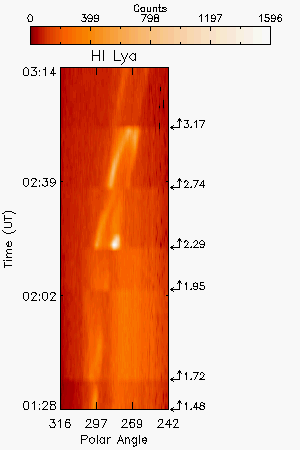

Ly alpha intensity

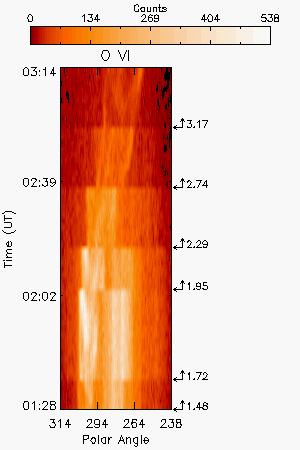

OVI 1032 intensity

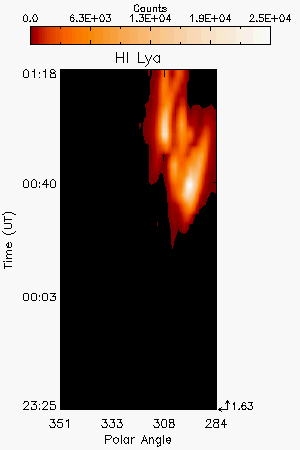

Ly alpha intensity

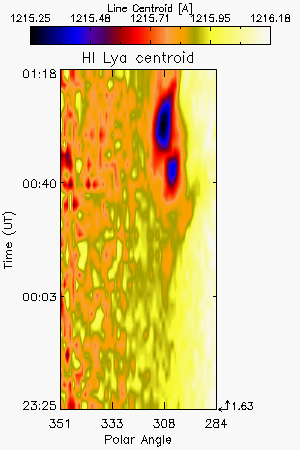

Ly alpha centroid

Interpretation

Front	No
Void	No
Shock	No
Current Sheet	No
Prominence	Yes
Flare O VI	No
Leg	Yes
Helix	Yes

Publications

Ciaravella et al. 2000 ApJ, 529, 575

Ciaravella et al. 2001 ApJ, 557, 351

Comments

Both dwell and synoptic
