UVCS CME Catalog: 19990209

CME 19990209

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID	Time (UT)	PA (deg)	Speed (km/sec)	Acceleration (m/sec²)	Mass (g)	Type II RB	X Flare
19990209.013005.p049s	01:30	47	853	61.4*	-------	No	No

Table 2 - UVCS Observation Sequence

FITS filename	PA (deg)	T_i(UT)	T_f (UT)	Height (R_sun)	Slit W. (arcsec)	Exp. Time (sec)
d99.02.09.01:14:59.ovi.dat	27	01:15:33	01:25:33	1.60	13	75
		01:27:30	01:30:00	1.90	13	75
	27	01:31:00	01:41:00	1.60	13	75
		01:42:58	01:45:28	1.90	13	75
	27	01:46:21	01:56:21	1.60	13	75
		01:58:16	02:00:46	1.90	13	75
	27	02:01:42	02:11:42	1.60	13	75
		02:13:33	02:16:03	1.90	13	75
	27	02:17:00	02:27:00	1.60	13	75
		02:28:57	02:31:27	1.90	13	75
	27	02:32:27	02:42:27	1.60	13	75
		02:44:25	02:46:55	1.90	13	75
	27	02:47:47	02:57:47	1.60	13	75
		02:59:43	03:02:13	1.90	13	75
	27	03:03:09	03:13:09	1.60	13	75
		03:15:08	03:17:38	1.90	13	75
d99.02.09.03:17:59.ovi.dat	27	03:18:30	03:28:30	1.60	13	75
		03:30:27	03:32:57	1.90	13	75
	27	03:33:56	03:43:56	1.60	13	75
		03:45:52	03:48:22	1.90	13	75
	27	03:49:14	03:59:14	1.60	13	75
		04:01:10	04:03:40	1.90	13	75
	27	04:04:36	04:14:36	1.60	13	75
		04:16:27	04:18:57	1.90	13	75
	27	04:19:54	04:29:54	1.60	13	75
		04:31:50	04:34:20	1.90	13	75
	27	04:35:12	04:45:12	1.60	13	75
		04:47:08	04:49:38	1.90	13	75
	27	04:50:34	05:00:34	1.60	13	75
		05:02:33	05:05:03	1.90	13	75
	27	05:05:55	05:15:55	1.60	13	75
		05:17:52	05:20:22	1.90	13	75

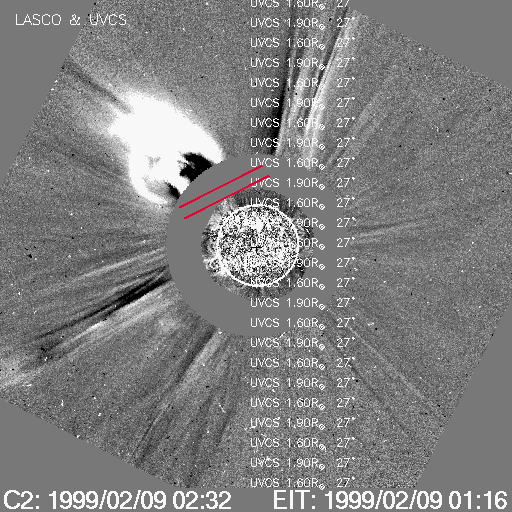

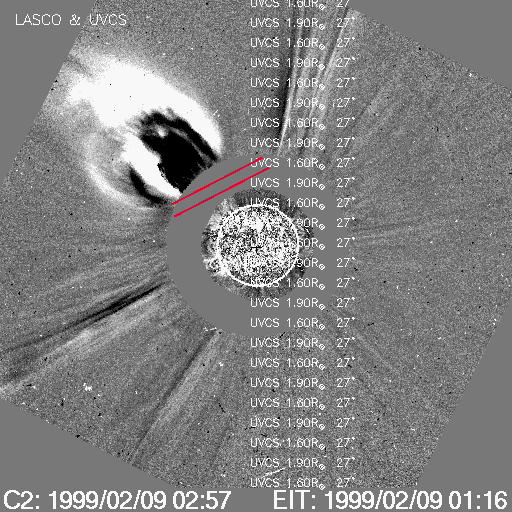

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename	Wave Min (A)	Wave Max (A)
d99.02.09.01:14:59.ovi.dat	1030.40	1039.20
	997.500	1000.50
	985.400	990.400
	1212.10	1216.70
	976.100	978.900
	1222.70	1225.30
d99.02.09.03:17:59.ovi.dat	1030.40	1039.20
	997.500	1000.50
	985.400	990.400
	1212.10	1216.70
	976.100	978.900
	1222.70	1225.30

Table 4 - UV Properties

First Obs.	Max blue-shift (km/sec)	Max red-shift (km/sec)	Detected at (R_sun)	Lines
1999/02/09 02:47	271		1.56,1.91	HILya1216 CIII977

Images

Intensity Images

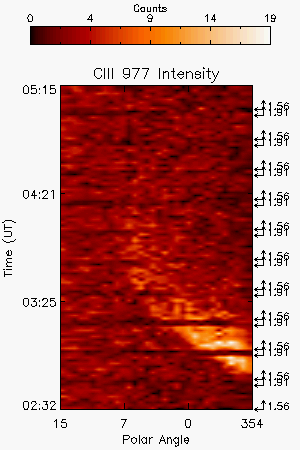

CIII 977 Intensity

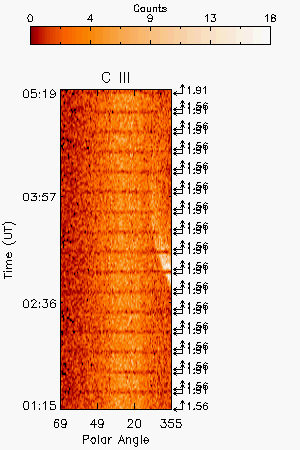

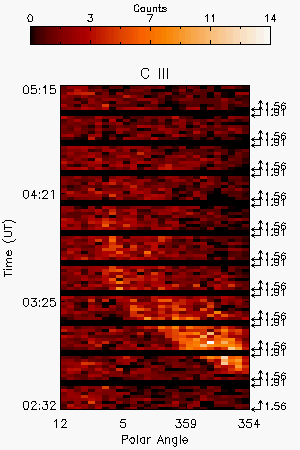

C III Intensity

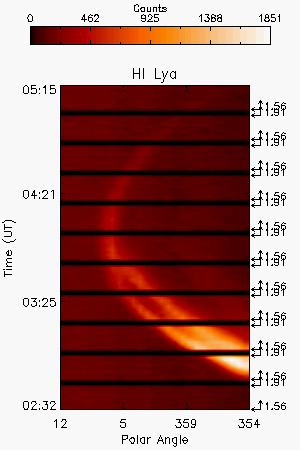

HI Ly-alpha intensity vs time at 1.56 Rsun

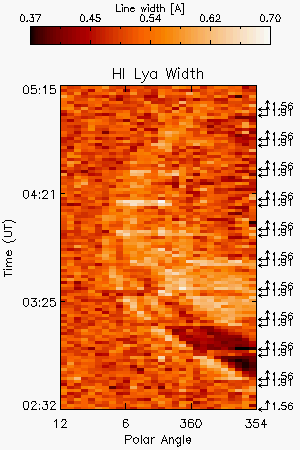

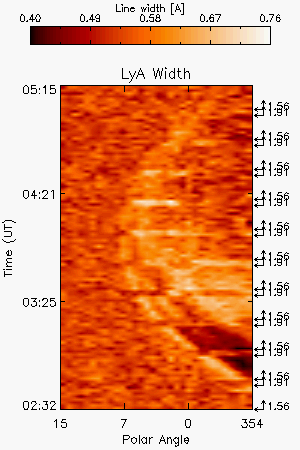

HI Ly-alpha width vs time

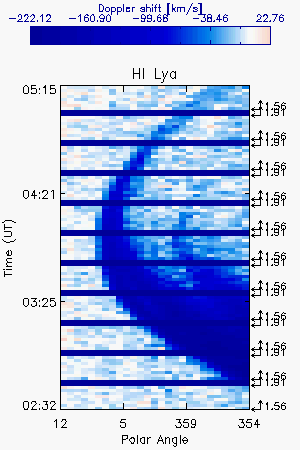

HI Ly-alpha centroid vs time at 1.56 Rsun

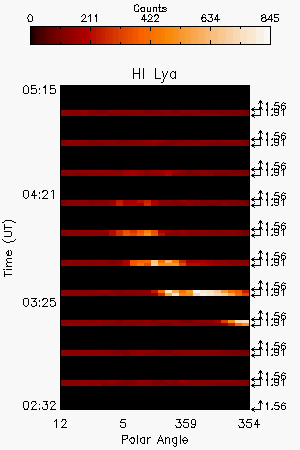

HI Ly-alpha intensity vs time at 1.91 Rsun

C III 977 intensity vs time at 1.56

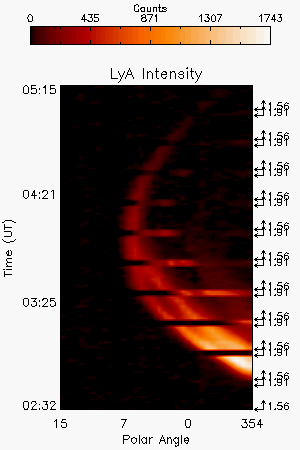

Ly alpha intensity

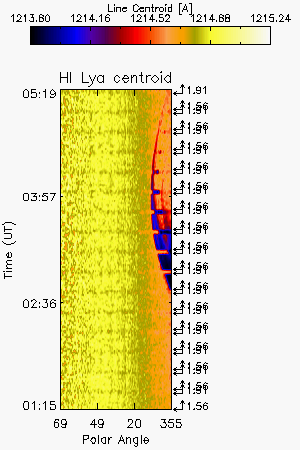

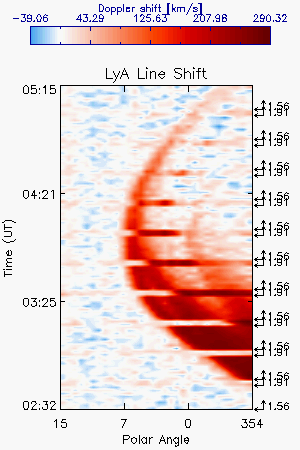

Ly alpha centroid

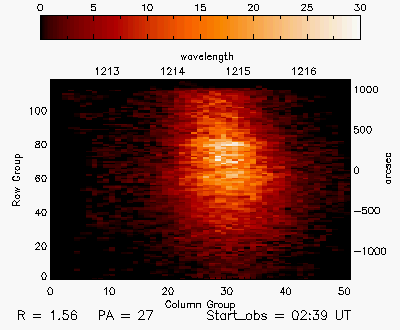

UVCS Spectra Movie

Interpretation

Front	No
Void	No
Shock	No
Current Sheet	No
Prominence	Yes
Flare O VI	No
Leg	Yes
Helix	No

Last Update Thu Mar 17 18:43:43 2011
