UVCS CME Catalog: 19990309

CME 19990309

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID	Time (UT)	PA (deg)	Speed (km/sec)	Acceleration (m/sec²)	Mass (g)	Type II RB	X Flare
19990309.192654.p130s	19:26	122	433	1.7	7.2e+14	No	Yes

Table 2 - UVCS Observation Sequence

FITS filename	PA (deg)	T_i(UT)	T_f (UT)	Height (R_sun)	Slit W. (arcsec)	Exp. Time (sec)
d99.03.09.17:52:23.ovi.dat	110	18:23:41	18:33:41	1.60	13	75
		18:35:39	18:38:09	1.90	13	75
	110	18:39:01	18:49:01	1.60	13	75
		18:50:57	18:53:27	1.90	13	75
	110	18:54:23	19:04:23	1.60	13	75
		19:06:22	19:08:52	1.90	13	75
	110	19:09:44	19:19:44	1.60	13	75
		19:21:41	19:24:11	1.90	13	75
	110	19:25:10	19:35:10	1.60	13	75
		19:37:06	19:39:36	1.90	13	75
	110	19:40:28	19:50:28	1.60	13	75
		19:52:24	19:54:54	1.90	13	75
d99.03.09.19:55:17.ovi.dat	110	19:55:50	20:05:50	1.60	13	75
		20:07:41	20:10:11	1.90	13	75
	110	20:11:08	20:21:08	1.60	13	75
		20:23:04	20:25:34	1.90	13	75
	110	20:26:26	20:36:26	1.60	13	75
		20:38:22	20:40:52	1.90	13	75
	110	20:41:48	20:51:48	1.60	13	75
		20:53:39	20:56:09	1.90	13	75
	110	20:57:06	21:07:06	1.60	13	75
		21:09:01	21:11:31	1.90	13	75
	110	21:12:23	21:22:23	1.60	13	75
		21:24:20	21:26:50	1.90	13	75
	110	21:27:46	21:37:46	1.60	13	75
		21:39:37	21:42:07	1.90	13	75
	110	21:43:04	21:53:04	1.60	13	75
		21:55:03	21:57:33	1.90	13	75
d99.03.09.21:57:57.ovi.dat	110	21:58:31	22:08:31	1.60	13	75
		22:10:29	22:12:59	1.90	13	75
	110	22:13:52	22:23:52	1.60	13	75
		22:25:47	22:28:17	1.90	13	75
	110	22:29:13	22:39:13	1.60	13	75
		22:41:04	22:43:34	1.90	13	75
	110	22:44:31	22:54:31	1.60	13	75
		22:56:28	22:58:58	1.90	13	75
	110	22:59:58	23:09:58	1.60	13	75
		23:11:56	23:14:26	1.90	13	75
	110	23:15:18	23:25:18	1.60	13	75
		23:27:14	23:29:44	1.90	13	75
	110	23:30:40	23:40:40	1.60	13	75
		23:42:39	23:45:09	1.90	13	75
	110	23:46:01	23:54:46	1.60	13	75
		23:57:58	00:00:28	1.90	13	75

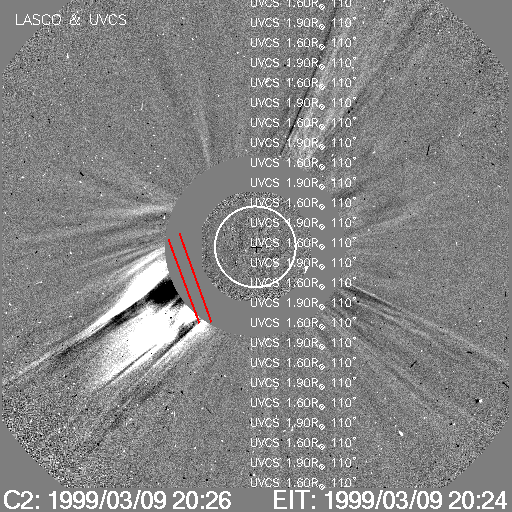

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename	Wave Min (A)	Wave Max (A)
d99.03.09.17:52:23.ovi.dat	1030.40	1039.20
	997.500	1000.50
	985.400	990.400
	1212.10	1216.70
	976.100	978.900
	1222.70	1225.30
d99.03.09.19:55:17.ovi.dat	1030.40	1039.20
	997.500	1000.50
	985.400	990.400
	1212.10	1216.70
	976.100	978.900
	1222.70	1225.30
d99.03.09.21:57:57.ovi.dat	1030.40	1039.20
	997.500	1000.50
	985.400	990.400
	1212.10	1216.70
	976.100	978.900
	1222.70	1225.30

Table 4 - UV Properties

First Obs.	Max blue-shift (km/sec)	Max red-shift (km/sec)	Detected at (R_sun)	Lines
1999/03/09 19:43	0	0	1.6, 1.9	OVI1032

Images

Intensity Images

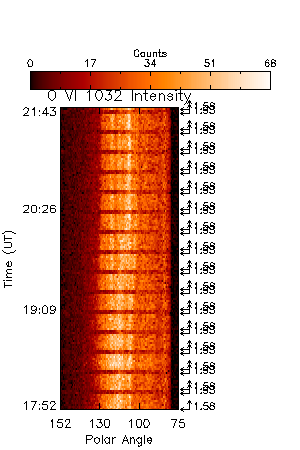

OVI 1032 Intensity. Note deflection toward north.

Interpretation

Front	No
Void	No
Shock	No
Current Sheet	No
Prominence	No
Flare O VI	No
Leg	No
Helix	No

Comments

UVCS was at the right position and right time. The event only shows some streamer deflection toward north, then intensity increases for one narrow width in the streamer. It is consistent with the LASCO 'wavelet' movie.

Last Update Fri Nov 20 18:30:59 2009
