CME 19990719
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 19990719.085405.p031g |
08:54 |
75 |
719 |
-14.4 |
6.1e+15 |
Yes |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d99.07.19.08:12:37.ovi.dat |
90 |
08:13:08 |
08:19:48 |
1.50 |
28 |
200 |
| 08:20:31 |
08:27:11 |
1.60 |
28 |
200 | ||
| 08:27:54 |
08:36:54 |
1.70 |
28 |
180 | ||
| 08:38:52 |
08:47:52 |
1.80 |
28 |
180 | ||
| 08:49:51 |
09:01:51 |
2.00 |
28 |
180 | ||
| 09:04:04 |
09:19:04 |
2.30 |
28 |
180 | ||
| 09:22:07 |
09:47:27 |
2.80 |
28 |
200 | ||
| 09:50:15 |
10:24:55 |
3.50 |
28 |
200 |

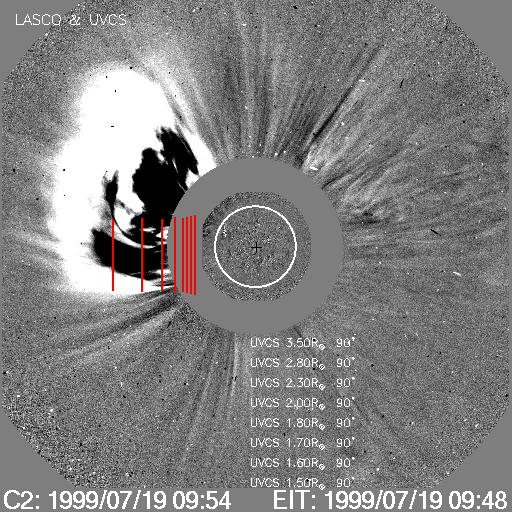

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d99.07.19.08:12:37.ovi.dat |
1023.40 |
1043.70 |
| 975.700 |
992.400 |
|
| 1207.60 |
1222.90 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 1999/07/19 08:27 | 90 | 135 | 1.67, 1.78, 2.01, 2.35, 2.90, 3.64 |
HILya1216 OVI1032 OVI1038 SiXII499 MgX610 |
| Images |

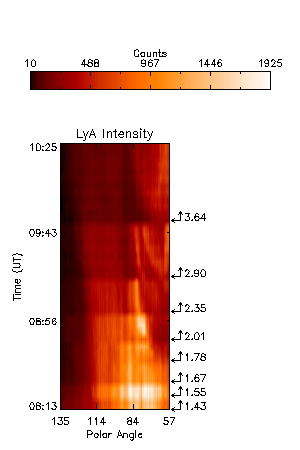

| Intensity Images |
||
| Plots and more |

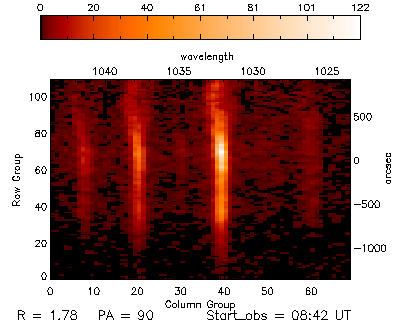

Dimmed and broadened lines (OVI doublet, Si XII and Mg X at top of the slit indicating shock front |
|
| Interpretation |
| Front | Yes |
| Void | No |
| Shock | ? |
| Current Sheet | No |
| Prominence | ? |
| Flare O VI | No |
| Leg | No |
| Helix | No |
| Comments |
Transient not seen in C III but in LyA and O VI.
