CME 19990817

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID
 Time (UT)
 PA (deg)
 Speed (km/sec)
 Acceleration (m/sec2)
 Mass (g)
 Type II RB
X Flare
19990817.050953.p146g
 05:09
 162
 736
 -7.0
1.1e+16*
 Yes
 Yes


Table 2 - UVCS Observation Sequence

FITS filename
 PA (deg)
 T i (UT)
 Tf (UT)
 Height (Rsun)
 Slit W. (arcsec)
 Exp. Time (sec)
d99.08.17.08:08:14.ovi.dat
 90
 08:08:44
 08:15:24
 1.50
 28
 200


08:16:07
 08:22:47
 1.60
 28
 200

90
 08:23:30
 08:32:30
 1.70
 28
 180


08:34:28
 08:43:28
 1.80
 28
 180

90
 08:45:26
 08:57:26
 2.00
 28
 180


08:59:41
 09:14:41
 2.30
 28
 180

90
 09:17:43
 09:43:03
 2.80
 28
 200

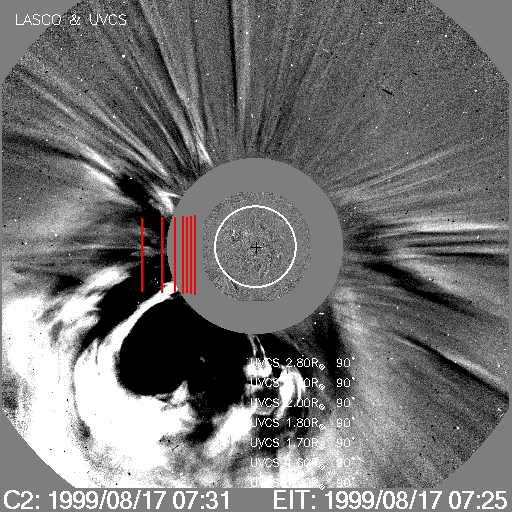

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename
 Wave Min (A)
 Wave Max (A)
d99.08.17.08:08:14.ovi.dat
 1023.10
 1043.40

997.500
 1000.30

971.800
 985.700

1208.50
 1221.30


Table 4 - UV Properties

First Obs. Max blue-shift (km/sec) Max red-shift (km/sec) Detected at (Rsun) Lines
1999/08/17 08:08 90 181 1.43,1.66,1.78,2.01,2.25,2.90,3.64 HILya1216
HILyb1026
CIII977
OV1214
OV1218

Images

Intensity Images

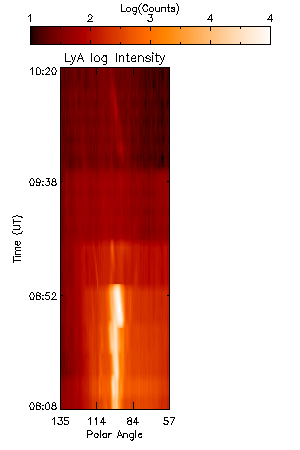

LyA log Intensity

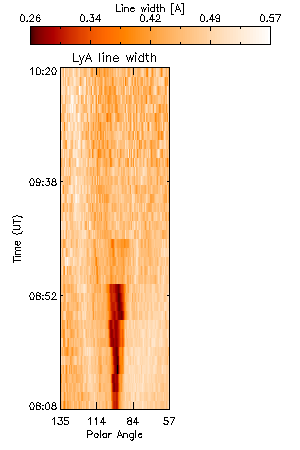

LyA line width

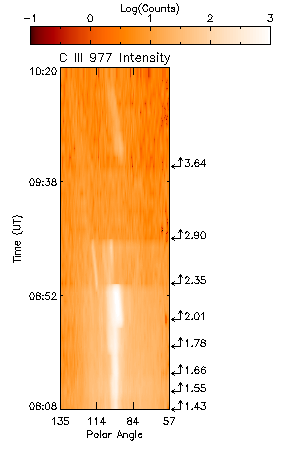

CIII 977 log Intensity


Interpretation

Front No
Void No
Shock No
Current Sheet No
Prominence Yes
Flare O VI No
Leg Yes
Helix No

Comments

Also seen in [O V], O V] at 2.01 Rs and below.

Last Update Mon Nov 23 11:36:58 2009
