UVCS CME Catalog: 20000201

CME 20000201

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID	Time (UT)	PA (deg)	Speed (km/sec)	Acceleration (m/sec²)	Mass (g)	Type II RB	X Flare
20000201.235405.p072s	23:54	70	491	-11.9	3.9e+15	No	No

Table 2 - UVCS Observation Sequence

FITS filename	PA (deg)	T_i(UT)	T_f (UT)	Height (R_sun)	Slit W. (arcsec)	Exp. Time (sec)
d00.02.01.21:38:18.ovi.dat	120	23:02:14	23:06:14	2.30	13	120
		23:07:32	23:17:32	2.30	13	120
	120	23:18:53	23:24:53	2.60	13	120
		23:26:01	23:36:01	2.30	13	120
	120	23:37:56	23:41:56	2.30	13	120
		23:43:15	23:53:15	2.30	13	120
	120	23:54:36	00:00:36	2.60	13	120
d00.02.02.00:01:12.ovi.dat	120	00:01:46	00:05:46	2.30	13	120
		00:06:11	00:12:11	2.30	13	120
	120	00:13:40	00:17:40	2.30	13	120
		00:18:58	00:28:58	2.30	13	120
	120	00:30:20	00:36:20	2.60	13	120
		00:37:27	00:47:27	2.30	13	120
	120	00:49:19	00:53:19	2.30	13	120
		00:54:42	01:04:42	2.30	13	120
	120	01:06:03	01:12:03	2.60	13	120
		01:13:11	01:23:11	2.30	13	120
	120	01:25:02	01:29:02	2.30	13	120
		01:30:25	01:40:25	2.30	13	120
	120	01:41:46	01:47:46	2.60	13	120

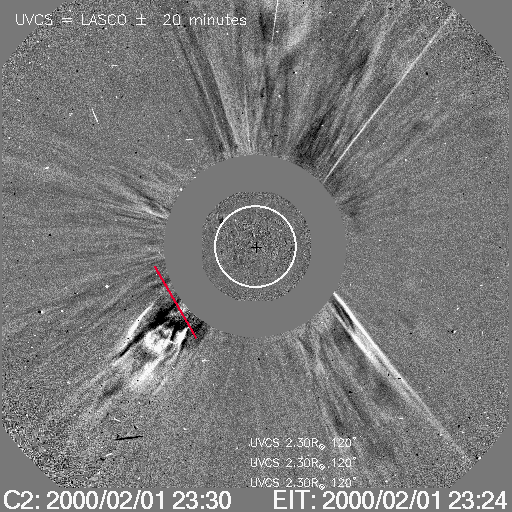

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename	Wave Min (A)	Wave Max (A)
d00.02.01.21:38:18.ovi.dat	1063.40	1068.10
	1029.50	1044.40
	1024.30	1027.70
	987.500	993.400
	1204.60	1210.10
	975.900	985.600
d00.02.02.00:01:12.ovi.dat	1063.40	1068.20
	1029.50	1044.40
	1024.30	1027.70
	987.500	993.400
	1204.60	1210.10
	975.900	985.600

Table 4 - UV Properties

First Obs.	Max blue-shift (km/sec)	Max red-shift (km/sec)	Detected at (R_sun)	Lines
2000/01/31 23:30	0	0	2.37	OVI1032

Images

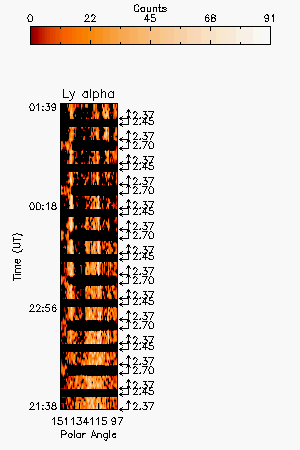

Intensity Images

Ly alpha difference

Interpretation

Front	No
Void	?
Shock	No
Current Sheet	No
Prominence	No
Flare O VI	No
Leg	No
Helix	No

Comments

Ly alpha and probably O VI fade by 10-20%. Sequence had two grating positions and 2 heights, giving stripes in intensity image.

Last Update Wed May 2 17:30:14 2012
