UVCS CME Catalog: 20000205

CME 20000205

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID	Time (UT)	PA (deg)	Speed (km/sec)	Acceleration (m/sec²)	Mass (g)	Type II RB	X Flare
20000205.221105.p144s	22:11	130	389	-2.3	3.5e+15	No	No

Table 2 - UVCS Observation Sequence

FITS filename	PA (deg)	T_i(UT)	T_f (UT)	Height (R_sun)	Slit W. (arcsec)	Exp. Time (sec)
d00.02.05.19:57:53.ovi.dat	102	19:57:52	23:09:52	1.70	13	120
d00.02.05.23:26:23.ovi.dat	102	23:26:22	00:02:22	1.70	13	120
		00:05:25	00:07:25	1.70	13	120
	102	00:07:35	02:41:35	1.70	13	120

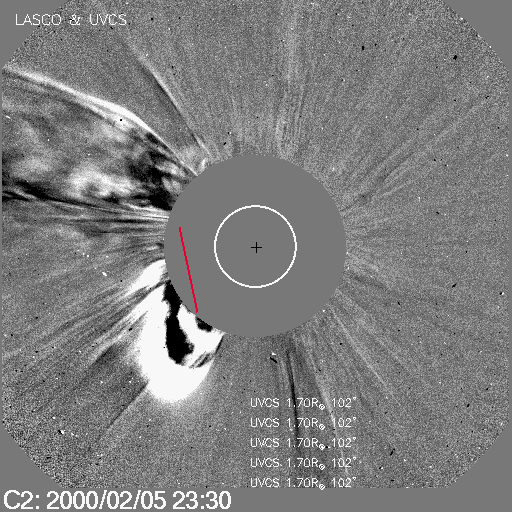

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename	Wave Min (A)	Wave Max (A)
d00.02.05.19:57:53.ovi.dat	1063.40	1068.10
	1029.50	1044.40
	1024.30	1027.70
	987.500	993.400
	1204.60	1210.10
	975.900	985.600
d00.02.05.23:26:23.ovi.dat	1063.40	1068.10
	1029.50	1044.40
	1024.30	1027.70
	987.500	993.400
	1204.60	1210.10
	975.900	985.600

Table 4 - UV Properties

First Obs.	Max blue-shift (km/sec)	Max red-shift (km/sec)	Detected at (R_sun)	Lines
2000/02/05 22:23	240	30	1.67	HILya1216 HILyb1026 CIII977 OVI1032 OVI1038 SiIII1207 NIII990 NIII992 CII1036 CII1037 OV1218 CII1036 CII1037

Images

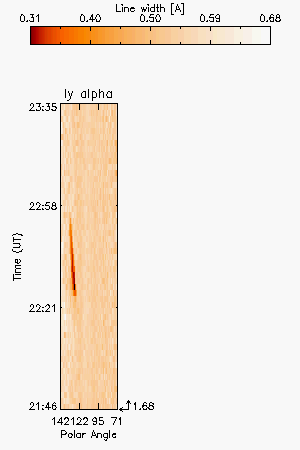

Intensity Images

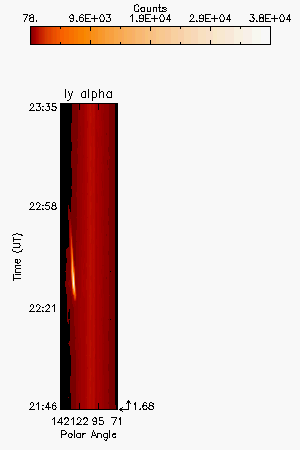

Ly alpha intensity

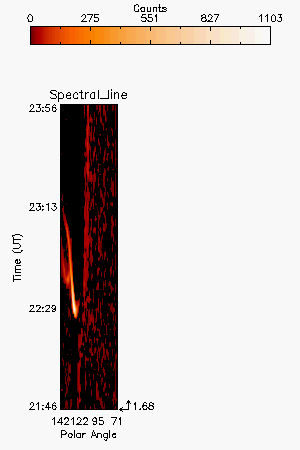

O VI difference: void and prominece

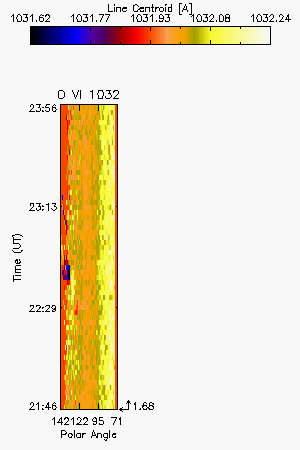

O VI prominence centroid

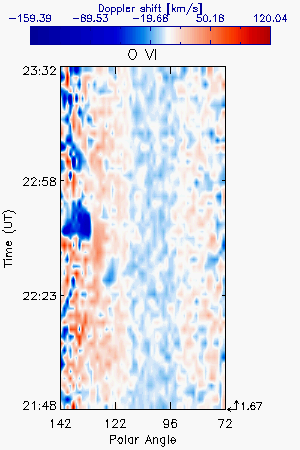

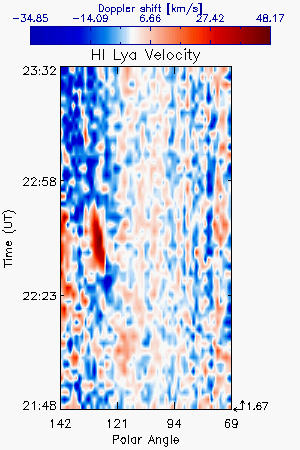

Ly alpha Velocity Centroid

Ly alpha Velocity Centroid

Plots and more

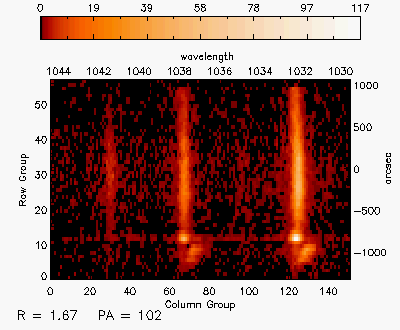

O VI doppler shift structure

Interpretation

Front	No
Void	?
Shock	No
Current Sheet	No
Prominence	Yes
Flare O VI	No
Leg	Yes
Helix	Yes

Comments

Brightest O VI shows blue-red-blue-red-blue shift as it moves down slit. O V] and N III are also detected

Last Update Thu Mar 17 18:51:42 2011
