MOVIE of UVCS Slit on LASCO Images
CME 20000206
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20000206.174119.p107s |
17:41 |
124 |
417 |
1.0 |
2.5e+15 |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d00.02.06.13:38:21.ovi.dat |
102 |
13:39:26 |
16:51:26 |
1.70 |
13 |
120 |
| d00.02.06.17:07:56.ovi.dat |
102 |
17:07:56 |
20:19:56 |
1.70 |
13 |
120 |

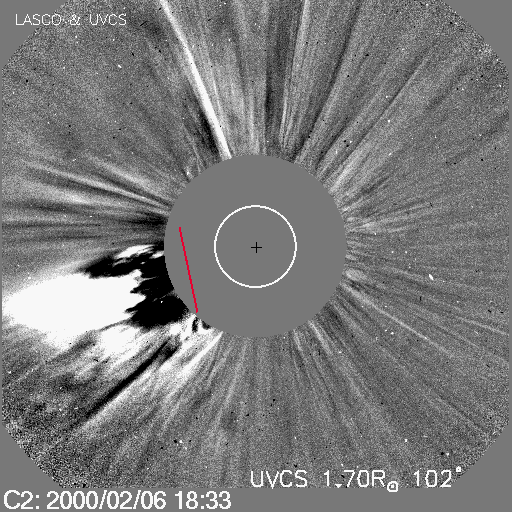

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d00.02.06.13:38:21.ovi.dat |
1063.40 |
1068.10 |
| 1029.50 |
1044.40 |
|
| 1024.30 |
1027.70 |
|
| 987.500 |
993.400 |
|
| 1204.60 |
1210.10 |
|
| 975.900 |
985.600 |
|
| d00.02.06.17:07:56.ovi.dat |
1063.40 |
1068.10 |
| 1029.50 |
1044.40 |
|
| 1024.30 |
1027.70 |
|
| 987.500 |
993.400 |
|
| 1204.60 |
1210.10 |
|
| 975.900 |
985.600 |
| Table 4 - UV Properties |

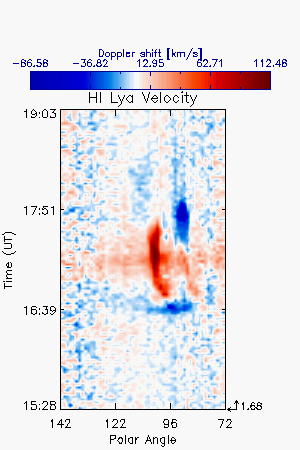

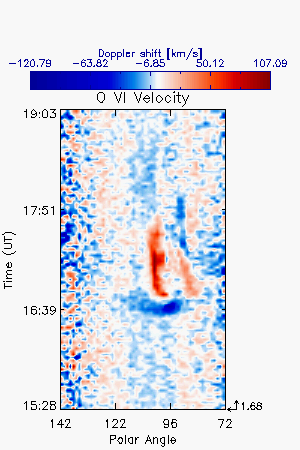

| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2000/02/06 16:28 | 120 | 150 | 1.68 |
HILya1216 CIII977 OVI1032 OVI1038 SiIII1207 NIII990 OV1218 |
| Images |

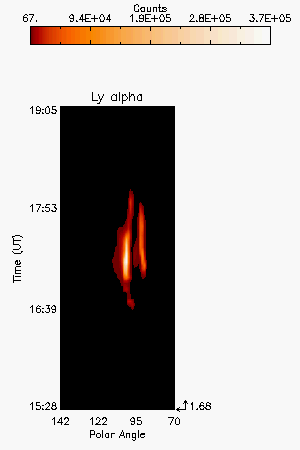

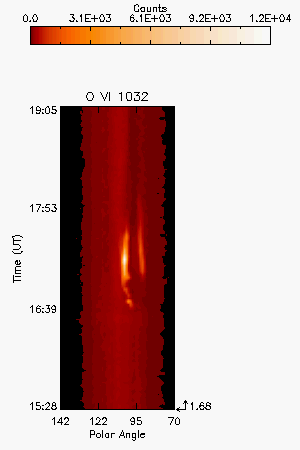

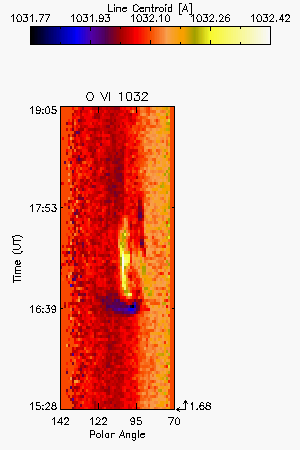

| Intensity Images |
||||||||
| Interpretation |
| Front | Yes |
| Void | ? |
| Shock | No |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | Yes |
| Leg | No |
| Helix | No |
| Publications |
Johnson et al, 2011, ApJ, 735, 70
| Comments |

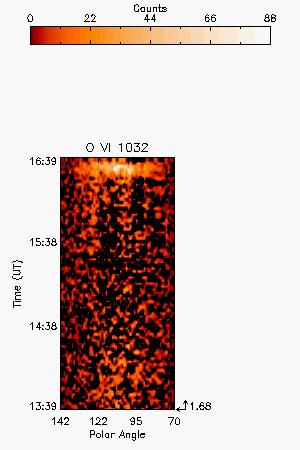

O V] and N III also detected. Flare O VI indicated by 4:1 ratio of additional O VI from 16:28 to 15:35. Front arrives between 16:35 and 16:37, 150 km/s velocity.
Last Update Tue Oct 9 17:43:02 2012
