MOVIE of UVCS Slit on LASCO Images
CME 20000305
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20000305.165405.p002s |
16:54 |
341 |
846 |
0.2 |
4.4e+15 |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d00.03.05.15:51:11.ovi.dat |
355 |
15:58:31 |
19:58:31 |
2.50 |
13 |
180 |
| d00.03.05.20:12:22.ovi.dat |
355 |
20:12:21 |
00:12:21 |
2.50 |
13 |
180 |

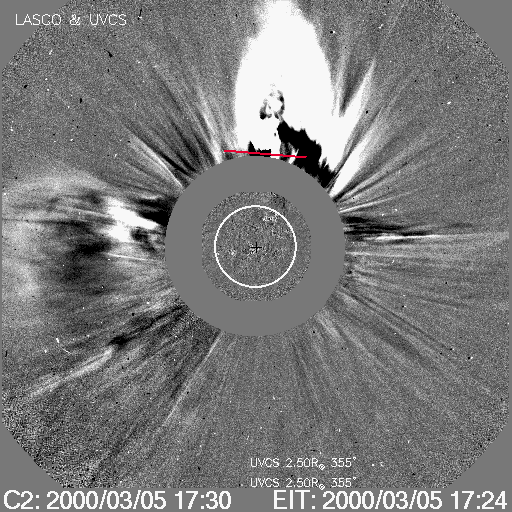

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d00.03.05.15:51:11.ovi.dat |
1095.80 |
1100.90 |
| 1027.80 |
1042.20 |
|
| 1007.70 |
1019.20 |
|
| 1241.90 |
1252.50 |
|
| d00.03.05.20:12:22.ovi.dat |
1095.80 |
1100.90 |
| 1027.80 |
1042.20 |
|
| 1007.70 |
1019.20 |
|
| 1241.90 |
1252.50 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2000/03/04 16:46 | 150 | 400 | 2.6 |
OVI1032 OVI1038 Ghost!1035 CII1036 CII1037 CII1036 CII1037 |
| Images |

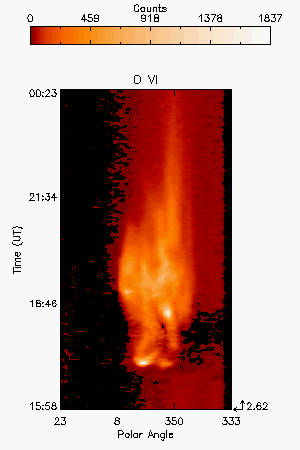

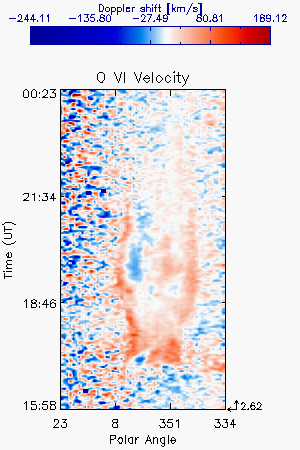

| Intensity Images |
|||
| Interpretation |
| Front | Yes |
| Void | ? |
| Shock | Yes |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | No |
| Leg | No |
| Helix | ? |
| Publications |
Tripathi & Raouafi 2007, A&A, 473, 951
| Comments |
C II 1036 also visible. Front O VI ~ 500 km/s wide, Ly alpha ghost at 1034
Last Update Wed Oct 10 15:59:18 2012
