CME 20000507
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20000507.205007.p269s |
20:50 |
Halo |
1781 |
-71.8 |
1.9e+15* |
Yes |
No |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d00.05.07.19:09:20.ovi.dat |
195 |
19:12:16 |
22:42:16 |
3.00 |
42 |
120 |
| d00.05.07.23:07:53.ovi.dat |
195 |
23:09:02 |
02:09:02 |
2.50 |
21 |
120 |

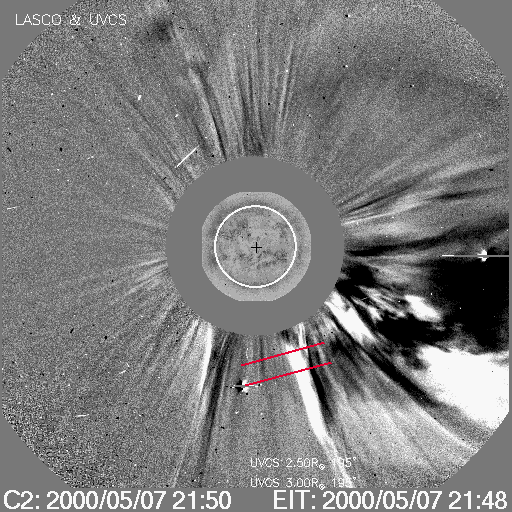

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d00.05.07.19:09:20.ovi.dat |
1024.60 |
1043.10 |
| 997.500 |
1000.80 |
|
| 970.600 |
980.000 |
|
| 1211.30 |
1220.00 |
|
| d00.05.07.23:07:53.ovi.dat |
1024.60 |
1043.10 |
| 997.500 |
1000.80 |
|
| 970.600 |
980.000 |
|
| 1211.30 |
1220.00 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2000/05/07 21:08 | 150 | 150 | 2.56,3.10 |
HILya1216 OVI1032 SiXII499 MgX610 |
| Images |

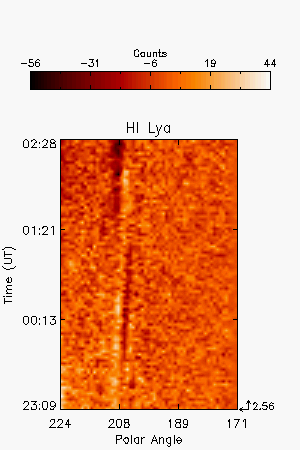

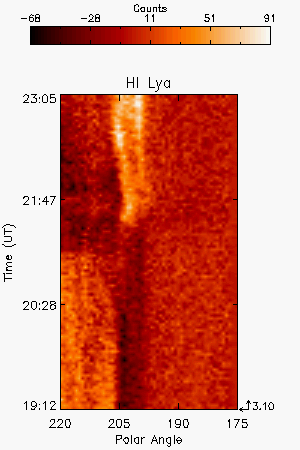

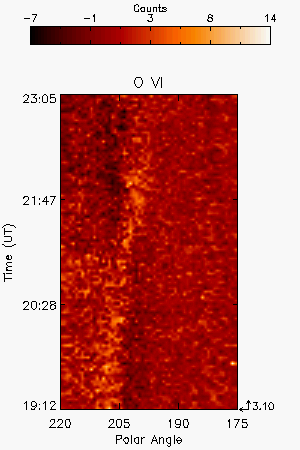

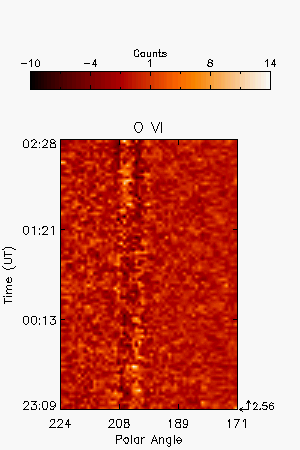

| Intensity Images |
|||||
| Interpretation |
| Front | Yes |
| Void | No |
| Shock | No |
| Current Sheet | No |
| Prominence | No |
| Flare O VI | No |
| Leg | No |
| Helix | No |
| Comments |
Streamer deflection; Si XII and Mg X at 150 km/s
