CME 20000709

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID
 Time (UT)
 PA (deg)
 Speed (km/sec)
 Acceleration (m/sec2)
 Mass (g)
 Type II RB
X Flare
20000709.172817.p073s
 17:28
 94
 609
 11.9*
 -------
No
 Yes


Table 2 - UVCS Observation Sequence

FITS filename
 PA (deg)
 T i (UT)
 Tf (UT)
 Height (Rsun)
 Slit W. (arcsec)
 Exp. Time (sec)
s00.07.09.16:56:32.ovi.dat
 45
 16:57:04
 17:25:04
 3.50
 41
 120


17:29:07
 17:53:07
 3.00
 41
 120

45
 17:56:37
 18:20:37
 2.50
 41
 120


18:24:20
 18:38:20
 2.10
 41
 120

45
 18:41:39
 18:51:39
 1.90
 41
 120


18:54:18
 19:02:18
 1.75
 41
 120

45
 19:04:21
 19:08:21
 1.60
 41
 120

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename
 Wave Min (A)
 Wave Max (A)
s00.07.09.16:56:32.ovi.dat
 1024.30
 1042.80

967.500
 979.600

1205.80
 1217.00


Table 4 - UV Properties

First Obs. Max blue-shift (km/sec) Max red-shift (km/sec) Detected at (Rsun) Lines
2000/07/09 17:56 50 2.55 HILya1216
OVI1032

Images

Intensity Images

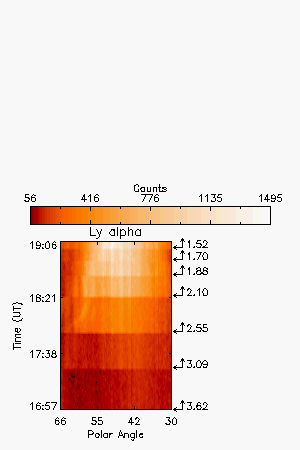

Ly alpha intensity

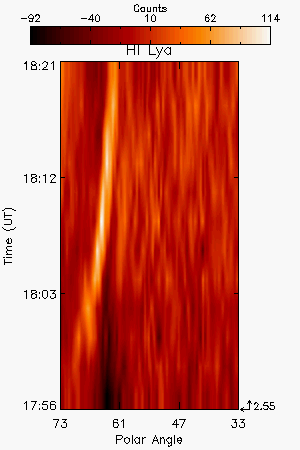

HI Ly-alpha Intensity Difference

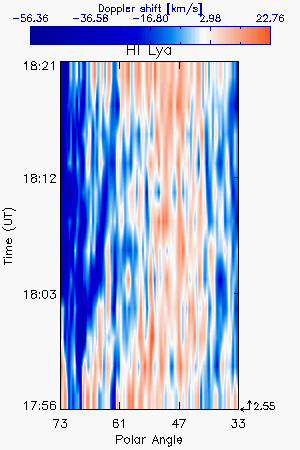

HI Ly-alpha Doppler Velocity

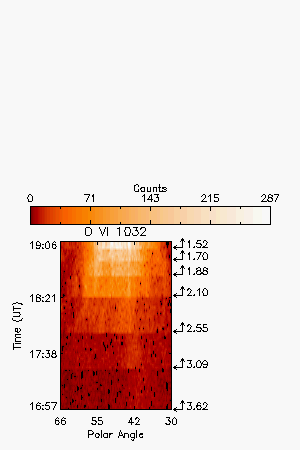

O VI Intensity


Interpretation

Front No
Void No
Shock No
Current Sheet No
Prominence No
Flare O VI No
Leg Yes
Helix No

Comments

Faint feature at 2.55 Rs moves from end of slit toward center. Front crossed slit at 3.6 Rs, but not detected.
