CME 20001022
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20001022.005007.p130g |
00:50 |
103 |
1024 |
-15.8 |
8.1e+15* |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d00.10.21.22:51:47.ovi.dat |
100 |
22:51:46 |
01:31:46 |
1.70 |
27 |
120 |
| d00.10.22.01:45:30.ovi.dat |
100 |
01:45:28 |
03:53:28 |
1.70 |
27 |
120 |
| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d00.10.21.22:51:47.ovi.dat |
1024.00 |
1040.90 |
| 998.100 |
1001.70 |
|
| 972.400 |
980.300 |
|
| 963.000 |
966.300 |
|
| d00.10.22.01:45:30.ovi.dat |
1024.00 |
1040.90 |
| 998.100 |
1001.70 |
|
| 972.400 |
980.300 |
|
| 963.000 |
966.300 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2000/10/22 00:402 | 180 | 350 | 1.63 |
HILyb1026 HILyg973 CIII977 OVI1032 OVI1038 CII1036 CII1037 CII1036 CII1037 |
| Images |

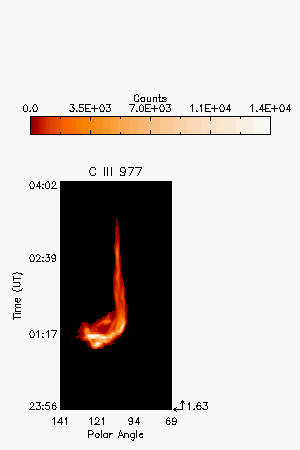

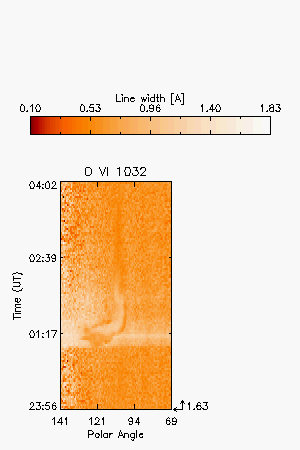

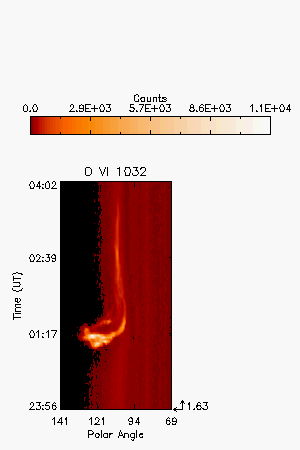

| Intensity Images |
|||||

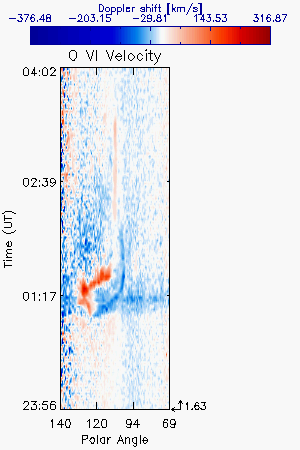

| Plots and more |
|
|

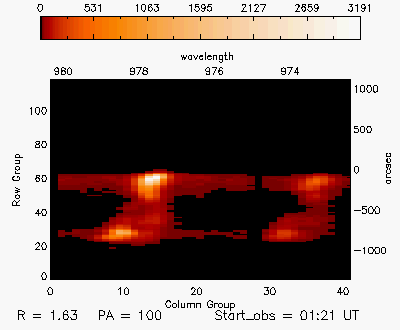

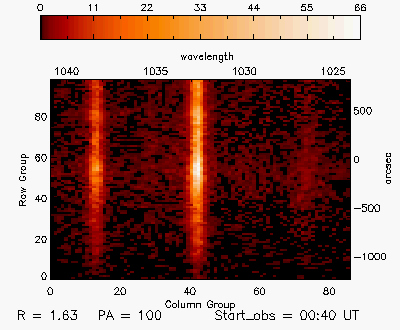

| UVCS Spectra Movie |
|
| Interpretation |
| Front | Yes |
| Void | No |
| Shock | No |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | No |
| Leg | Yes |
| Helix | ? |
| Publications |
Ciaravella et al. 2006, ApJ, 652, 774
| Comments |
Probable Ne VI] on top of scattered light. Front
