CME 20010215
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20010215.135405.p017g |
13:54 |
Halo |
625 |
4.0 |
9.1e+15* |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d01.02.15.11:48:26.ovi.dat |
1 |
11:49:54 |
21:19:54 |
2.80 |
21 |
600 |

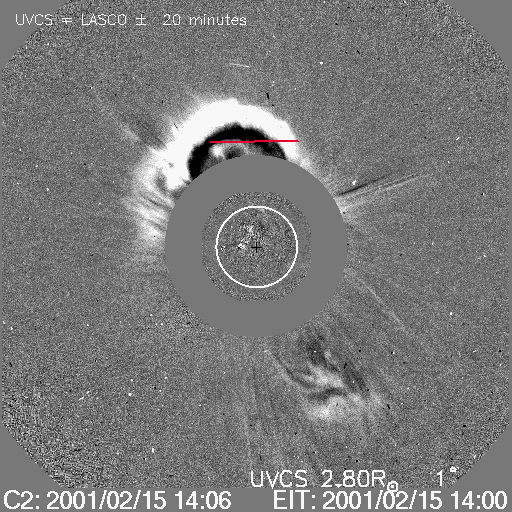

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d01.02.15.11:48:26.ovi.dat |
1029.00 |
1043.30 |
| 996.900 |
1001.20 |
|
| 982.200 |
992.200 |
|
| 1211.00 |
1220.20 |
|
| 976.200 |
979.600 |
|
| 1222.60 |
1225.80 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2001/02/15 13:54 | 250 | 40 | 2.86 |
HILya1216 OVI1032 OVI1038 |
| Images |

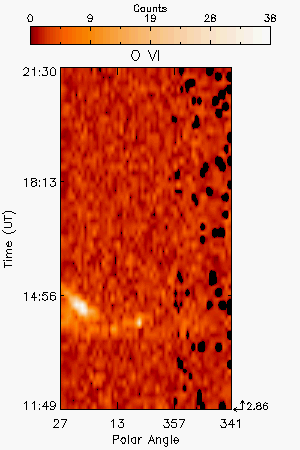

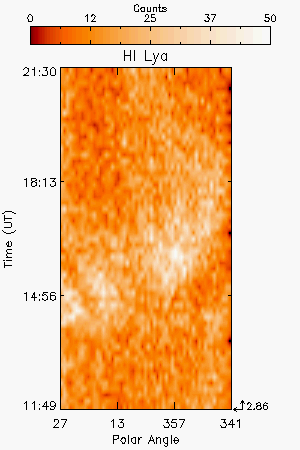

| Intensity Images |
|||
| Interpretation |
| Front | Yes |
| Void | Yes |
| Shock | ? |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | No |
| Leg | No |
| Helix | No |
| Publications |
Ciaravella et al. 2006, ApJ 652, 774
| Comments |
Broad O VI at front, but poor statistics. Bright, cool O VI loop inside front, along with diffuse Ly alpha.
Last Update Wed Oct 10 22:50:07 2012
