CME 20010402
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20010402.220607.p293g |
22:06 |
261 |
2505 |
108.5* |
9.2e+15* |
Yes |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d01.04.02.18:29:17.ovi.dat |
224 |
19:20:46 |
22:20:46 |
2.00 |
13 |
600 |
| d01.04.02.22:27:13.ovi.dat |
225 |
22:28:13 |
04:28:13 |
2.40 |
21 |
600 |

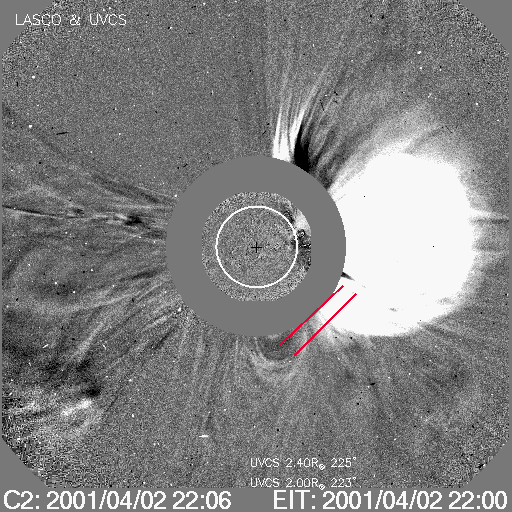

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d01.04.02.18:29:17.ovi.dat |
1029.00 |
1043.30 |
| 996.900 |
1001.20 |
|
| 982.200 |
992.200 |
|
| 1211.00 |
1220.20 |
|
| 976.200 |
979.600 |
|
| 1222.60 |
1225.80 |
|
| d01.04.02.22:27:13.ovi.dat |
1029.00 |
1043.30 |
| 996.900 |
1001.20 |
|
| 982.200 |
992.200 |
|
| 1211.00 |
1220.20 |
|
| 976.200 |
979.600 |
|
| 1222.60 |
1225.80 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2001/04/02 21:45 | 120 | 60 | 2.0, 2.45 |
HILya1216 OVI1032 OVI1038 |

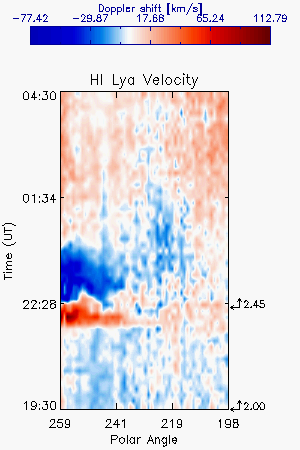

| Images |

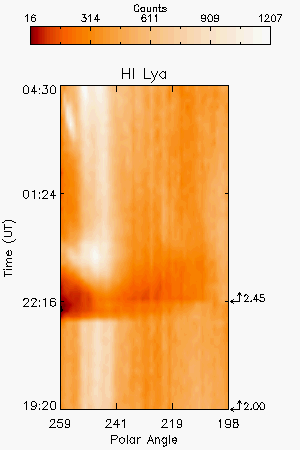

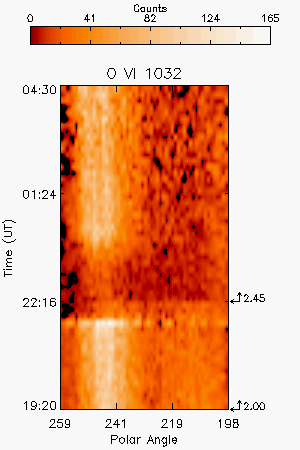

| Intensity Images |
||||
| Interpretation |
| Front | Yes |
| Void | No |
| Shock | Yes |
| Current Sheet | No |
| Prominence | ? |
| Flare O VI | ? |
| Leg | No |
| Helix | No |
| Publications |
Ciaravella et al. 2006, ApJ, 652, 774; Mancuso and Abbo 2004, A&A, 415, L17
| Comments |
Probable flare O VI, possible shock. Very high X-ray background 21:35 - 22:16 UT.
