CME 20010508

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID
 Time (UT)
 PA (deg)
 Speed (km/sec)
 Acceleration (m/sec2)
 Mass (g)
 Type II RB
X Flare
20010508.043005.p054g
 04:30
 49
 520
 -8.2*
 2.9e+15
No
 No


Table 2 - UVCS Observation Sequence

FITS filename
 PA (deg)
 T i (UT)
 Tf (UT)
 Height (Rsun)
 Slit W. (arcsec)
 Exp. Time (sec)
d01.05.07.23:01:48.ovi.dat
 10
 23:03:09
 05:03:09
 2.40
 20
 600

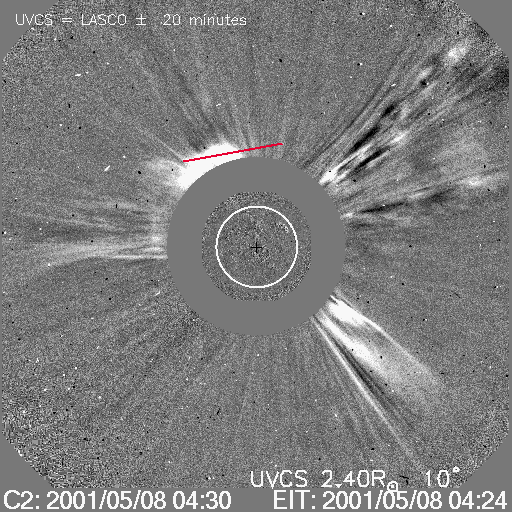

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename
 Wave Min (A)
 Wave Max (A)
d01.05.07.23:01:48.ovi.dat
 1028.90
 1043.10

996.800
 1001.10

980.400
 990.400

1211.00
 1220.20

975.900
 979.300

1221.20
 1224.40


Table 4 - UV Properties

First Obs. Max blue-shift (km/sec) Max red-shift (km/sec) Detected at (Rsun) Lines
2005/05/07 04:13 170 120 2.43 HILya1216
OVI1032
OVI1038

Images

Intensity Images

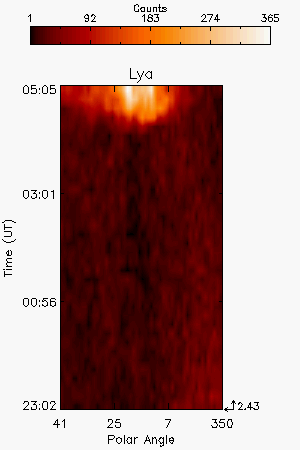

H I Lya intensity image

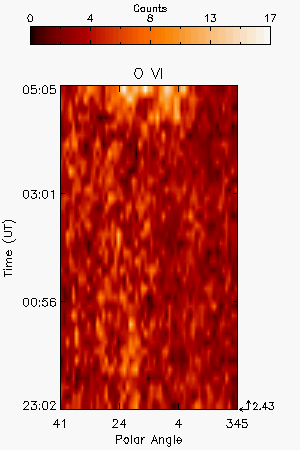

O VI 1032A intensity image


Interpretation

Front Yes
Void No
Shock No
Current Sheet No
Prominence No
Flare O VI No
Leg No
Helix No

Comments

Broadenig of O VI lines at the passage of the front

Last Update Sat May 9 04:13:11 2009
