CME 20010605

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

CME ID
 Time (UT)
 PA (deg)
 Speed (km/sec)
 Acceleration (m/sec2)
 Mass (g)
 Type II RB
X Flare
20010605.050605.p114g
 05:06
 117
 836
 17.0
2.4e+15*
 No
 Yes


Table 2 - UVCS Observation Sequence

FITS filename
 PA (deg)
 T i (UT)
 Tf (UT)
 Height (Rsun)
 Slit W. (arcsec)
 Exp. Time (sec)
s01.06.05.05:33:32.ovi.dat
 90
 05:34:25
 06:38:25
 3.50
 42
 120


06:46:08
 07:40:08
 3.00
 42
 120
s01.06.05.07:46:06.ovi.dat
 90
 07:47:02
 08:15:02
 3.50
 42
 120


08:18:58
 08:42:58
 3.00
 42
 120


08:46:30
 09:10:30
 2.50
 42
 120


09:14:09
 09:28:09
 2.10
 42
 120

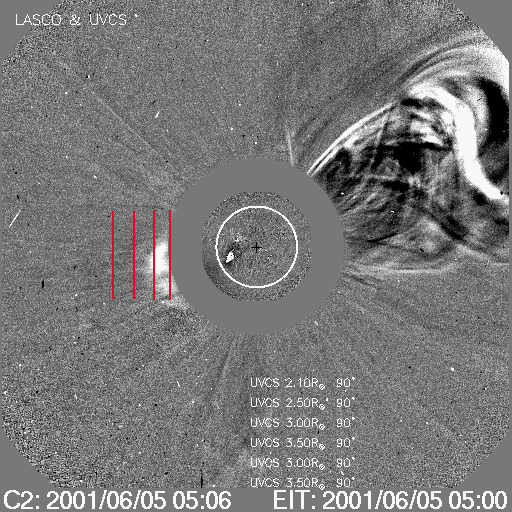

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename
 Wave Min (A)
 Wave Max (A)
s01.06.05.05:33:32.ovi.dat
 1024.50
 1042.70

966.600
 978.900

1204.70
 1216.00
s01.06.05.07:46:06.ovi.dat
 1024.50
 1042.70

966.600
 978.900

1204.70
 1216.00


Table 4 - UV Properties

First Obs. Max blue-shift (km/sec) Max red-shift (km/sec) Detected at (Rsun) Lines
2001/06/05 06:16 600 3.61, 3.08, 2.55 HILya1216
HILyb1026
CIII977
OVI1032
OVI1038

Images

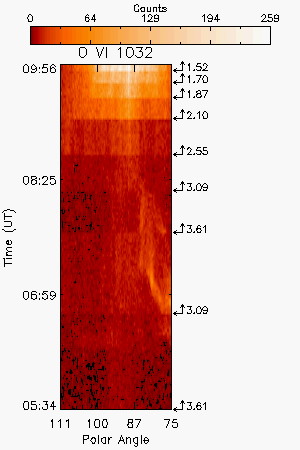

Intensity Images

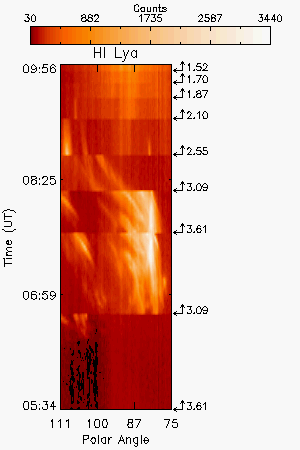

Ly alpha intensity

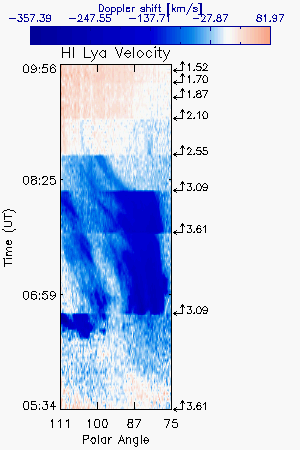

Ly alpha Velocity Centroid

O VI Intensity Difference


Interpretation

Front No
Void No
Shock No
Current Sheet No
Prominence Yes
Flare O VI No
Leg No
Helix No

Comments

Diffuse sheet of O VI at -600 km/s followed by fragments in O VI and cooler lines. Same gas at two heights.
