MOVIE of UVCS Slit on LASCO Images
CME 20010811
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20010811.015405.p275s |
01:54 |
272 |
357 |
-8.7 |
8.8e+14 |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d01.08.10.23:51:06.ovi.dat |
290 |
23:51:05 |
02:31:05 |
1.70 |
26 |
120 |
| d01.08.11.02:44:52.ovi.dat |
290 |
02:44:51 |
03:48:51 |
1.70 |
26 |
120 |

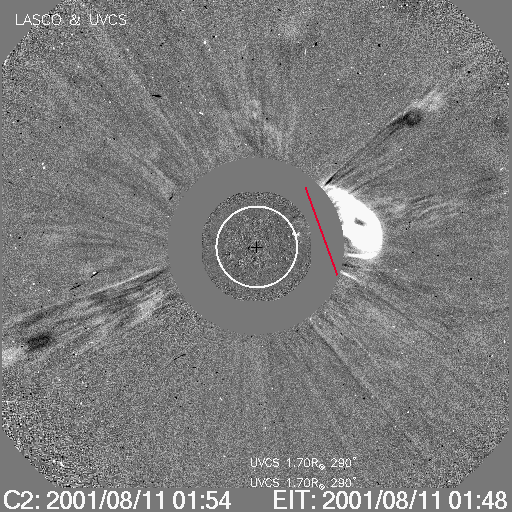

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d01.08.10.23:51:06.ovi.dat |
1024.10 |
1043.40 |
| 998.300 |
1009.10 |
|
| 991.300 |
994.900 |
|
| 967.100 |
981.200 |
|
| 944.700 |
965.800 |
|
| 1171.60 |
1191.00 |
|
| d01.08.11.02:44:52.ovi.dat |
1024.10 |
1043.40 |
| 998.300 |
1009.10 |
|
| 991.300 |
994.900 |
|
| 967.100 |
981.200 |
|
| 944.700 |
965.800 |
|
| 1171.60 |
1191.00 |

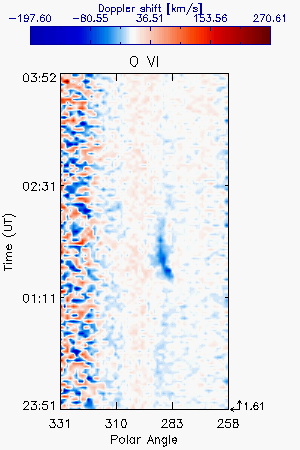

| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2001/08/11 01:18 | 100 | 50 | 1.61 |
HILyb1026 HILyg973 CIII977 OVI1032 OVI1038 NIII992 |
| Images |

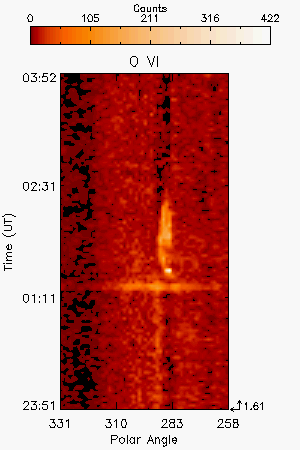

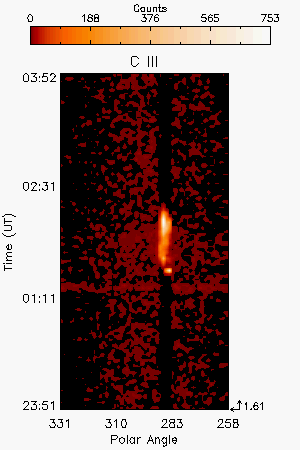

| Intensity Images |
||||
| Interpretation |
| Front | No |
| Void | No |
| Shock | No |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | Yes |
| Leg | No |
| Helix | No |
| Publications |
Johnson et al., 2011, ApJ, 735, 70
| Comments |
Flare O VI and flare CIII stray light
Last Update Tue Oct 9 18:56:18 2012
