MOVIE of UVCS Slit on LASCO Images
CME 20020315
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20020315.113006.p259n |
11:30 |
305 |
1050 |
15.1 |
7.2e+15* |
No |
No |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d02.03.15.04:41:47.ovi.dat |
349 |
04:42:51 |
13:42:51 |
2.40 |
21 |
600 |
| s02.03.15.14:11:22.ovi.dat |
270 |
14:11:54 |
14:21:54 |
1.75 |
42 |
120 |
| 14:24:38 |
14:32:38 |
1.60 |
42 |
120 |

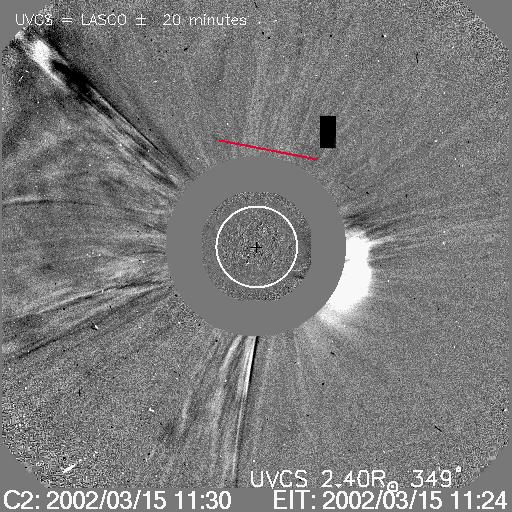

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d02.03.15.04:41:47.ovi.dat |
1029.00 |
1043.30 |
| 996.900 |
1001.20 |
|
| 982.200 |
992.200 |
|
| 1211.10 |
1220.20 |
|
| 976.200 |
979.600 |
|
| 1222.60 |
1225.80 |
|
| s02.03.15.14:11:22.ovi.dat |
1022.90 |
1043.20 |
| 998.000 |
1000.70 |
|
| 971.700 |
985.600 |
|
| 1208.30 |
1221.20 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2002/03/15 11:26 UT | 140 | 2.42(PA=349);1.70,1.53(PA=270) |
HILya1216 HILyb1026 OVI1032 OVI1038 | |
| Images |

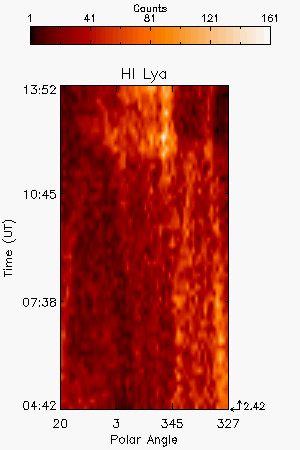

| Intensity Images |
||
| Interpretation |
| Front | Yes |
| Void | Yes |
| Shock | No |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | No |
| Leg | No |
| Helix | No |
| Comments |
Long exposure time for the spectra taken during the passage of the front.
Last Update Tue Oct 5 16:40:27 2010
