UVCS CME Catalog: 20020401

CME 20020401

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID	Time (UT)	PA (deg)	Speed (km/sec)	Acceleration (m/sec²)	Mass (g)	Type II RB	X Flare
20020401.183507.p269s	18:35	263	297	7.9	-------	No	No

Table 2 - UVCS Observation Sequence

FITS filename	PA (deg)	T_i(UT)	T_f (UT)	Height (R_sun)	Slit W. (arcsec)	Exp. Time (sec)
d02.04.01.15:23:58.ovi.dat	280	15:23:57	18:03:57	1.70	27	120
d02.04.01.18:17:34.ovi.dat	280	18:17:34	20:57:34	1.70	27	120
s02.04.01.21:13:58.ovi.dat	270	21:14:29	21:42:29	3.50	41	120
		21:46:14	22:10:14	3.00	41	120
	270	22:13:59	22:37:59	2.50	41	120
		22:41:38	22:55:38	2.10	41	120
	270	22:59:02	23:09:02	1.90	41	120
		23:11:50	23:19:50	1.75	41	120
	270	23:21:53	23:25:53	1.60	41	120

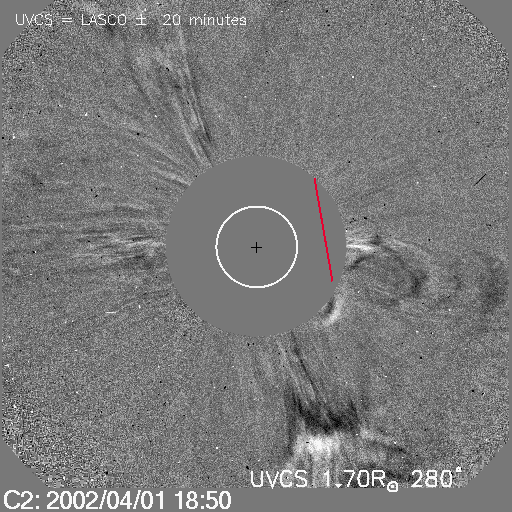

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename	Wave Min (A)	Wave Max (A)
d02.04.01.15:23:58.ovi.dat	1024.00	1043.20
	998.100	1008.90
	991.100	994.700
	967.200	981.100
	943.700	965.100
	1171.80	1191.60
d02.04.01.18:17:34.ovi.dat	1024.00	1043.20
	998.100	1008.90
	991.100	994.700
	967.200	981.100
	943.700	965.100
	1171.80	1191.60
s02.04.01.21:13:58.ovi.dat	1022.90	1043.20
	998.000	1000.70
	971.700	985.600
	1208.30	1221.20

Table 4 - UV Properties

First Obs.	Max blue-shift (km/sec)	Max red-shift (km/sec)	Detected at (R_sun)	Lines
2002/04/01 18:30			1.62 (PA=180); 3.62,3.09,2.55,2.10,1.88 (PA=280)	HILya1216 OVI1032 OVI1038 SiXII499

Images

Intensity Images

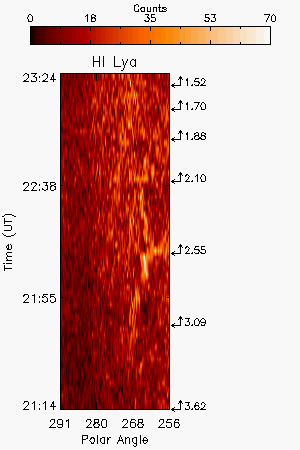

H I Lya difference image at PA=280

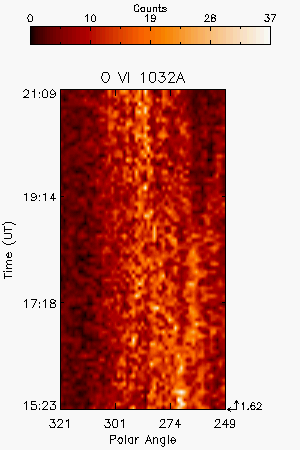

O VI 1032A image at PA=280

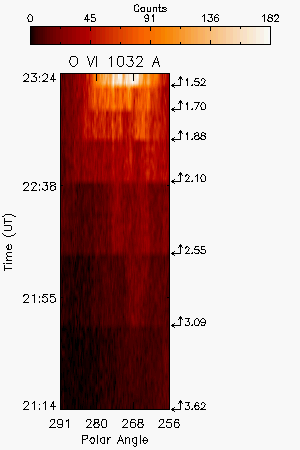

O Vi 1032 A difference image at PA=270

Interpretation

Front	No
Void	Yes
Shock	No
Current Sheet	No
Prominence	No
Flare O VI	No
Leg	No
Helix	No
