CME 20020414

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID
 Time (UT)
 PA (deg)
 Speed (km/sec)
 Acceleration (m/sec2)
 Mass (g)
 Type II RB
X Flare
20020414.022606.p221s
 02:26
 212
 591
 -6.0
1.7e+15
No
 Yes


Table 2 - UVCS Observation Sequence

FITS filename
 PA (deg)
 T i (UT)
 Tf (UT)
 Height (Rsun)
 Slit W. (arcsec)
 Exp. Time (sec)
d02.04.13.21:31:33.ovi.dat
 222
 21:32:33
 03:32:33
 2.40
 20
 600
s02.04.14.03:47:13.ovi.dat
 225
 03:47:46
 04:15:46
 3.50
 41
 120


04:19:46
 04:43:46
 3.00
 41
 120

225
 04:47:20
 05:11:20
 2.50
 41
 120


05:15:03
 05:29:03
 2.10
 41
 120

225
 05:32:30
 05:42:30
 1.90
 41
 120


05:45:29
 05:53:29
 1.75
 41
 120

225
 05:55:31
 05:59:31
 1.60
 41
 120

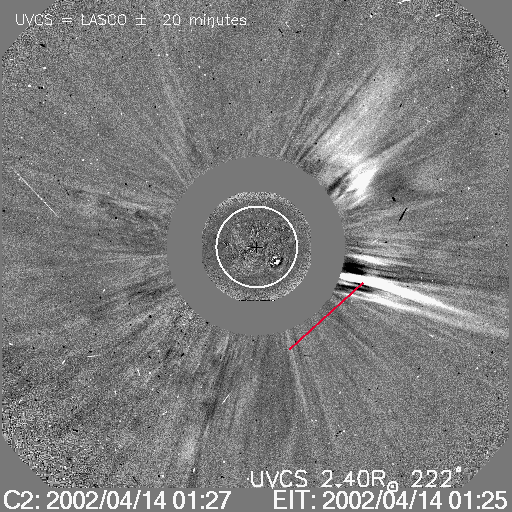

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename
 Wave Min (A)
 Wave Max (A)
d02.04.13.21:31:33.ovi.dat
 1029.00
 1043.30

996.900
 1001.20

982.200
 992.200

1211.10
 1220.20

976.200
 979.600

1222.60
 1225.80
s02.04.14.03:47:13.ovi.dat
 1022.90
 1043.20

998.000
 1000.70

971.700
 985.600

1208.30
 1221.20


Table 4 - UV Properties

First Obs. Max blue-shift (km/sec) Max red-shift (km/sec) Detected at (Rsun) Lines
2002/04/14 02:12 UT 2.46(PA=222);3.10,2.56,2.11(PA=225) HILya1216
OVI1032
OVI1038

Images

Intensity Images

HI Lya difference image at PA=225

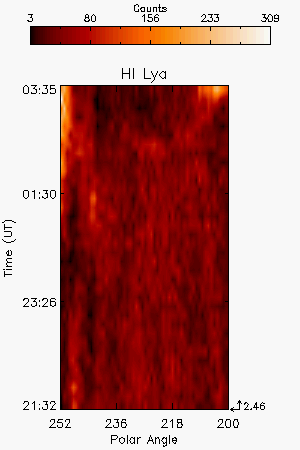

HI Lya difference image at PA=222. The intensity variation in the bottom part of the image belongs to a previous CME


Interpretation

Front Yes
Void Yes
Shock No
Current Sheet No
Prominence Yes
Flare O VI No
Leg No
Helix No

Comments

Exposure too long (10min) to provide detailed analysis of the passage of the CME front.
