CME 20020504
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20020504.155005.p128s |
15:50 |
111 |
143 |
18.4* |
3.6e+14 |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| s02.05.04.15:34:03.ovi.dat |
135 |
15:34:33 |
15:44:33 |
1.75 |
41 |
120 |
| 15:47:27 |
15:55:27 |
1.60 |
41 |
120 |

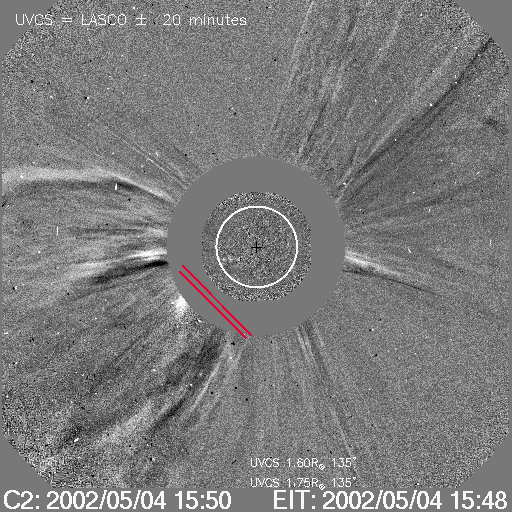

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| s02.05.04.15:34:03.ovi.dat |
1022.90 |
1043.20 |
| 998.000 |
1000.70 |
|
| 971.700 |
985.600 |
|
| 1208.30 |
1221.20 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2002/05/04 15:44 UT | 1.74,1.56 |
HILya1216 OVI1032 OVI1038 SiXII499 SiXII521 |
||
| Images |

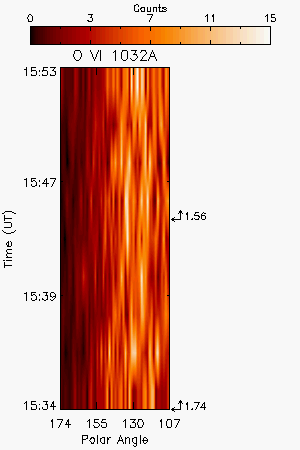

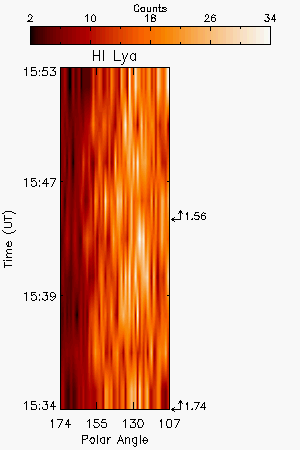

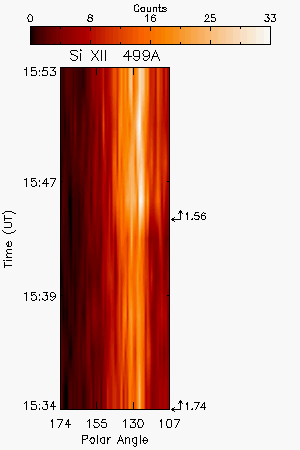

| Intensity Images |
||||
| Interpretation |
| Front | No |
| Void | No |
| Shock | No |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | No |
| Leg | No |
| Helix | No |
