UVCS CME Catalog: 20020816

CME 20020816

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID	Time (UT)	PA (deg)	Speed (km/sec)	Acceleration (m/sec²)	Mass (g)	Type II RB	X Flare
20020816.053005.p248s	05:30	257	493	-62.7*	1.2e+14*	Yes	No

Table 2 - UVCS Observation Sequence

FITS filename	PA (deg)	T_i(UT)	T_f (UT)	Height (R_sun)	Slit W. (arcsec)	Exp. Time (sec)
s02.08.16.04:25:13.ovi.dat	270	04:25:43	04:53:43	3.50	41	120
		04:57:29	05:21:29	3.00	41	120
	270	05:25:06	05:49:06	2.50	41	120
		05:52:47	06:06:47	2.10	41	120
	270	06:10:07	06:20:07	1.90	41	120
		06:22:52	06:30:52	1.75	41	120
	270	06:32:52	06:36:52	1.60	41	120

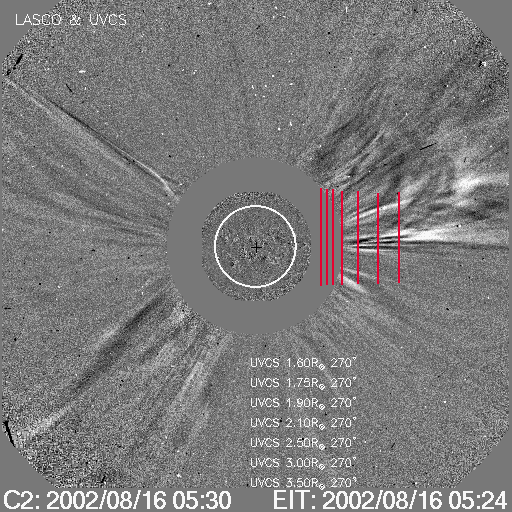

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename	Wave Min (A)	Wave Max (A)
s02.08.16.04:25:13.ovi.dat	1023.90	1039.60
	997.800	1000.40
	975.700	988.000
	1211.60	1223.00

Table 4 - UV Properties

First Obs.	Max blue-shift (km/sec)	Max red-shift (km/sec)	Detected at (R_sun)	Lines
2002/08/16 04:54	0		3.62,3.09,2.55	HILya1216 HILyb1026 CIII977 OVI1032 OVI1038 OV1218

Images

Intensity Images

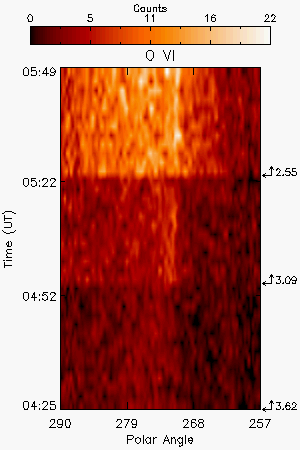

O VI 1032A intensity image at several heights

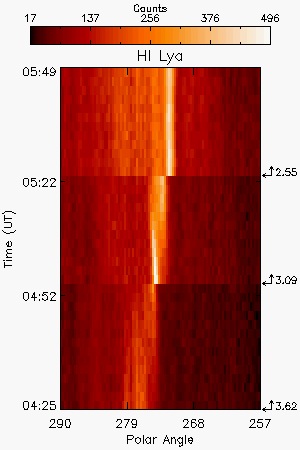

H I Lya 1216A intensity at several heights

Interpretation

Front	Yes
Void	No
Shock	?
Current Sheet	No
Prominence	Yes
Flare O VI	No
Leg	No
Helix	No

Comments

The UV data include two events. The first detected at 3.62 and 3.1R shows a narrow feature in cold lines. The second is a partial halo and is first detected at 05:57 UT at 2.11R. Wide profiles of both O VI and HI Lya are detected.

Last Update Fri May 11 11:24:28 2012
