CME 20030118
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20030118.105616.p119g |
10:56 |
116 |
550 |
-20.7 |
1.3e+15 |
No |
No |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d03.01.18.07:05:05.ovi.dat |
150 |
07:13:25 |
17:03:25 |
2.50 |
21 |
600 |
| 07:13:25 |
17:03:25 |
2.50 |
21 |
600 |

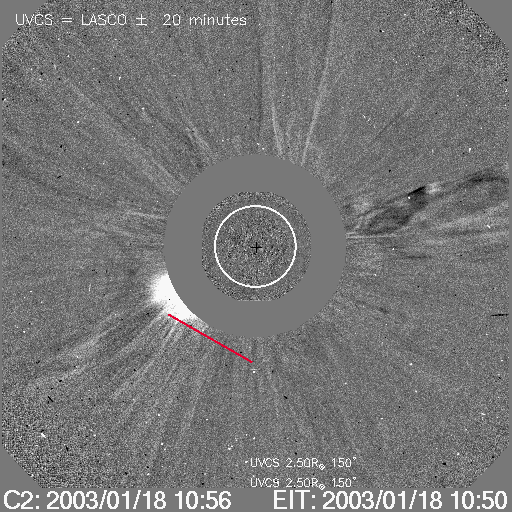

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d03.01.18.07:05:05.ovi.dat |
1028.00 |
1043.00 |
| 997.200 |
1000.70 |
|
| 980.600 |
990.600 |
|
| 1211.10 |
1220.30 |
|
| 975.900 |
979.300 |
|
| 1221.50 |
1224.60 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2003/01/18 10:47 | 0 | 0 | 2.60 |
HILya1216 OVI1032 OVI1038 SiXII499 |
| Images |

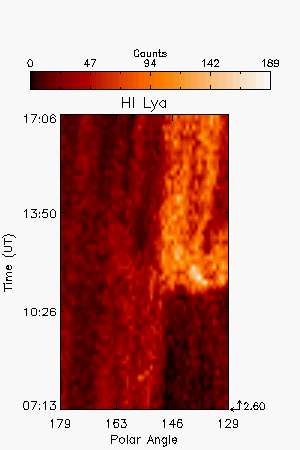

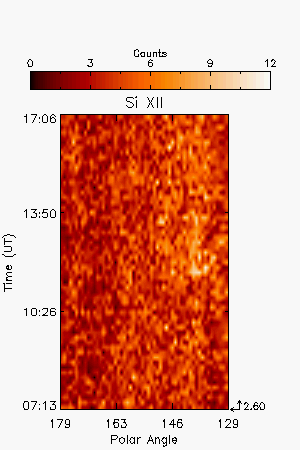

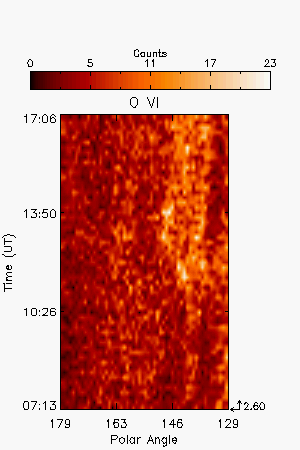

| Intensity Images |
||||
| Interpretation |
| Front | Yes |
| Void | Yes |
| Shock | No |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | No |
| Leg | Yes |
| Helix | No |
| Comments |
Exposure time too long, 600 sec, for a detailed analysis of the front
