CME 20030203

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID
 Time (UT)
 PA (deg)
 Speed (km/sec)
 Acceleration (m/sec2)
 Mass (g)
 Type II RB
X Flare
20030203.103614.p235g
 10:36
 238
 297
 5.6*
 2.2e+15
No
 No


Table 2 - UVCS Observation Sequence

FITS filename
 PA (deg)
 T i (UT)
 Tf (UT)
 Height (Rsun)
 Slit W. (arcsec)
 Exp. Time (sec)
s03.02.03.13:22:17.ovi.dat
 180
 13:22:47
 13:36:47
 3.00
 41
 120

180
 13:40:00
 14:04:00
 2.50
 41
 120

180
 14:07:43
 14:21:43
 2.10
 41
 120

180
 14:24:58
 14:34:58
 1.90
 41
 120

180
 14:37:55
 14:45:55
 1.75
 41
 120

180
 14:47:57
 14:51:57
 1.60
 41
 120
s03.02.03.14:56:58.ovi.dat
 225
 14:57:28
 15:11:28
 3.00
 41
 120

225
 15:14:45
 15:38:45
 2.50
 41
 120

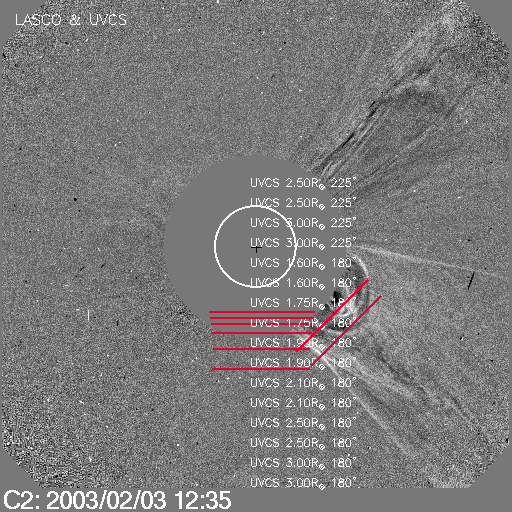

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename
 Wave Min (A)
 Wave Max (A)
s03.02.03.13:22:17.ovi.dat
 1024.40
 1042.70

966.600
 978.900

1204.70
 1216.10
s03.02.03.14:56:58.ovi.dat
 1024.40
 1042.70

966.600
 978.900

1204.70
 1216.10


Table 4 - UV Properties

First Obs. Max blue-shift (km/sec) Max red-shift (km/sec) Detected at (Rsun) Lines
2003/02/03 14:04 0 0 2.13,1.90,1.73,1.55 (PA=180);2.11,1.88,1.71 (PA=225) HILya1216
OVI1032
OVI1038
SiXII499

Images

Intensity Images

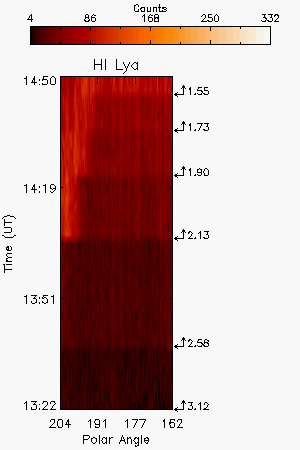

H I Lya 1216A intensity image center at PA=180

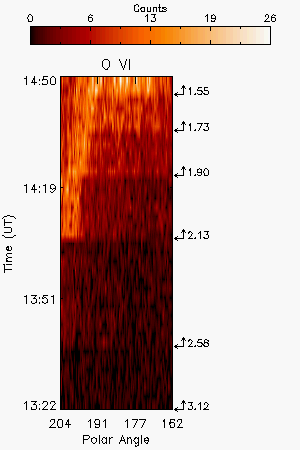

O VI 1032A intensity image centered at PA=180


Interpretation

Front No
Void No
Shock No
Current Sheet No
Prominence Yes
Flare O VI No
Leg Yes
Helix No

Comments

CME detected at two polar angle 180 and 225. Small intensity variation.
