MOVIE of UVCS Slit on LASCO Images
CME 20030318
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20030318.180605.p219g |
18:06 |
220 |
252 |
10.1* |
3.4e+15 |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d03.03.18.17:56:10.ovi.dat |
230 |
17:58:06 |
18:43:06 |
1.70 |
13 |
300 |
| 231 |
18:48:15 |
21:48:15 |
2.00 |
13 |
600 | |
| d03.03.18.21:54:39.ovi.dat |
232 |
21:55:39 |
03:55:39 |
2.40 |
21 |
600 |

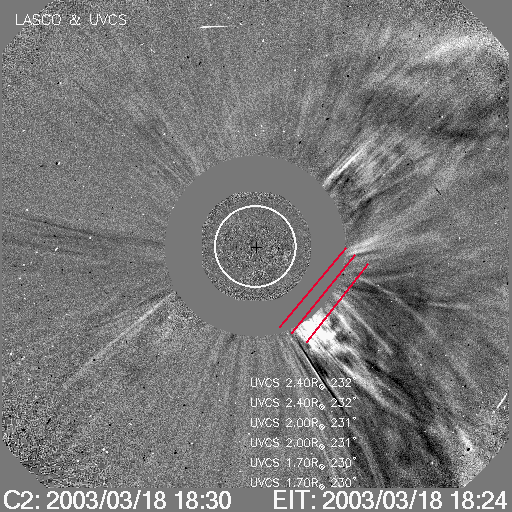

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d03.03.18.17:56:10.ovi.dat |
1028.00 |
1043.00 |
| 997.200 |
1000.70 |
|
| 980.600 |
990.600 |
|
| 1211.10 |
1220.30 |
|
| 975.900 |
979.300 |
|
| 1221.50 |
1224.60 |
|
| d03.03.18.21:54:39.ovi.dat |
1028.00 |
1043.00 |
| 997.200 |
1000.70 |
|
| 980.600 |
990.600 |
|
| 1211.10 |
1220.30 |
|
| 975.900 |
979.300 |
|
| 1221.50 |
1224.60 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2003/03/18 17:58 | 1.66,2.0(PA=231);2.46(PA=232) |
HILya1216 OVI1032 OVI1038 | ||
| Images |

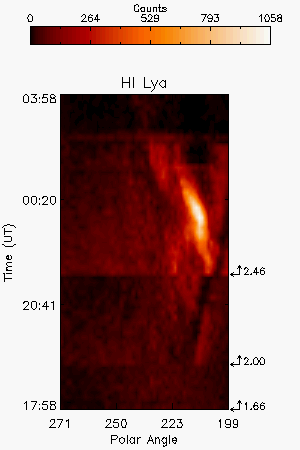

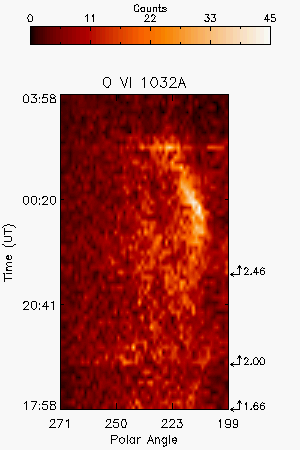

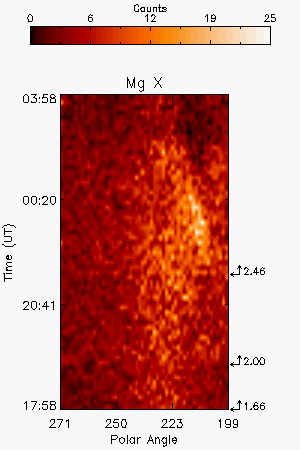

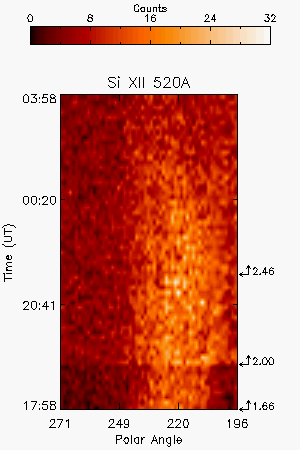

| Intensity Images |
|||||
| Interpretation |
| Front | No |
| Void | Yes |
| Shock | No |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | No |
| Leg | No |
| Helix | No |
