CME 20030321

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID
 Time (UT)
 PA (deg)
 Speed (km/sec)
 Acceleration (m/sec2)
 Mass (g)
 Type II RB
X Flare
20030321.105406.p053g
 10:54
 54
 481
 6.8
3.4e+15
No
 No


Table 2 - UVCS Observation Sequence

FITS filename
 PA (deg)
 T i (UT)
 Tf (UT)
 Height (Rsun)
 Slit W. (arcsec)
 Exp. Time (sec)
s03.03.21.10:34:52.ovi.dat
 90
 10:35:45
 10:45:45
 1.75
 41
 120


10:48:30
 10:56:30
 1.60
 41
 120

UVCS Slit Position

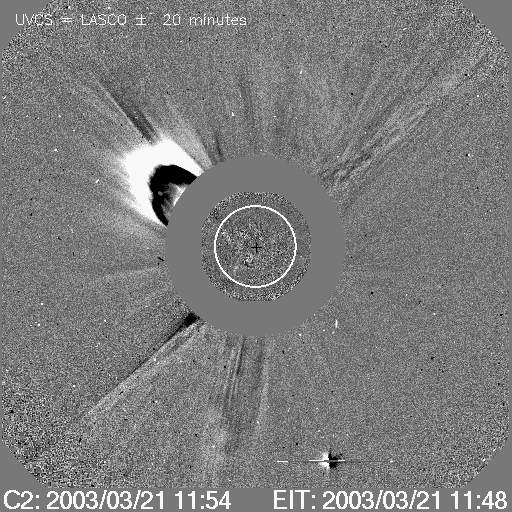

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename
 Wave Min (A)
 Wave Max (A)
s03.03.21.10:34:52.ovi.dat
 1024.40
 1042.70

966.600
 978.900

1204.70
 1216.10


Table 4 - UV Properties

First Obs. Max blue-shift (km/sec) Max red-shift (km/sec) Detected at (Rsun) Lines
2003/03/21 10:35 1.70,1.53 HILya1216
HILyb1026
HILyg973
CIII977
OVI1032
OVI1038

Images

Intensity Images

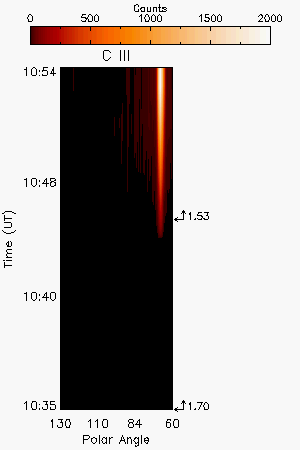

C III 977A intensity image

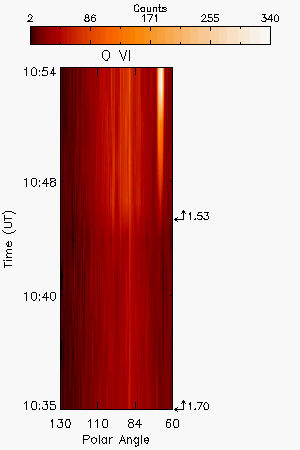

O VI 1032A intensity image


Interpretation

Front ?
Void No
Shock No
Current Sheet No
Prominence Yes
Flare O VI No
Leg No
Helix No

Comments

The is a small broadening and dimming of the OVI lines at 1.7R. Then the bright feature could be the flank of the front.

Last Update Wed May 13 21:13:58 2009
