CME 20030922

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID
 Time (UT)
 PA (deg)
 Speed (km/sec)
 Acceleration (m/sec2)
 Mass (g)
 Type II RB
X Flare
20030922.030606.p089s
 03:06
 76
 428
 -9.3*
 -------
No
 No


Table 2 - UVCS Observation Sequence

FITS filename
 PA (deg)
 T i (UT)
 Tf (UT)
 Height (Rsun)
 Slit W. (arcsec)
 Exp. Time (sec)
s03.09.22.04:01:36.ovi.dat
 90
 04:02:30
 04:16:30
 3.00
 42
 120


04:19:50
 04:43:50
 2.50
 42
 120


04:47:34
 05:01:34
 2.10
 41
 120


05:04:53
 05:14:53
 1.90
 41
 120


05:17:32
 05:25:32
 1.75
 41
 120


05:27:35
 05:31:35
 1.60
 41
 120
s03.09.22.05:36:12.ovi.dat
 135
 05:37:04
 05:51:04
 3.00
 41
 120


05:54:25
 06:18:25
 2.50
 41
 120


06:22:14
 06:36:14
 2.10
 41
 120


06:39:29
 06:49:29
 1.90
 41
 120


06:52:26
 07:00:26
 1.75
 41
 120


07:02:28
 07:06:28
 1.60
 41
 120

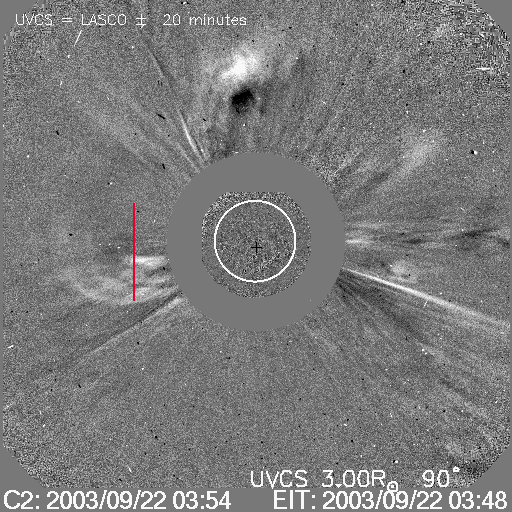

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename
 Wave Min (A)
 Wave Max (A)
s03.09.22.04:01:36.ovi.dat
 1024.30
 1042.80

967.500
 979.700

1205.90
 1217.00
s03.09.22.05:36:12.ovi.dat
 1024.30
 1042.80

967.500
 979.700

1205.90
 1217.00


Table 4 - UV Properties

First Obs. Max blue-shift (km/sec) Max red-shift (km/sec) Detected at (Rsun) Lines
2003/09/22 04:02 500 3.10,2.56,2.11,1.88,1.71,1.53 HILya1216
CIII977
OVI1032
OVI1038

Images

Intensity Images

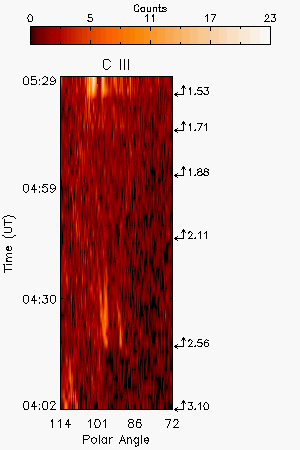

C III 977A intensity image at PA=90

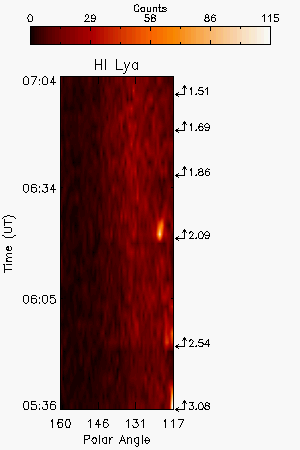

H I Lya 1216A intensity image at PA=135

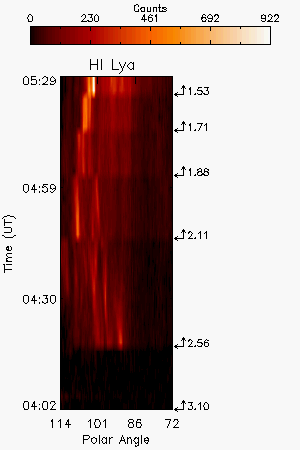

H I Lya 1216A intensity image at PA=90

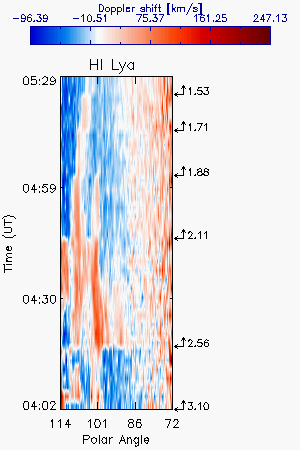

H I Lya 1216A Doppler shift image at PA=90

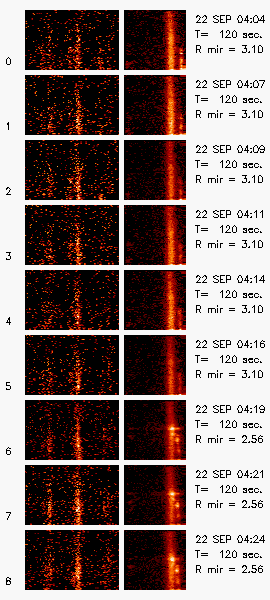

UV spectra from 04:04 to 04:24 UT. In the first panel, from the left, are O VI 1037, 1032A doublet and H I Lyb 1026A. The second panel contains C III 977A and H I Lya 1216A.


Interpretation

Front No
Void No
Shock No
Current Sheet No
Prominence Yes
Flare O VI No
Leg No
Helix No
