CME 20031024

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

CME ID
 Time (UT)
 PA (deg)
 Speed (km/sec)
 Acceleration (m/sec2)
 Mass (g)
 Type II RB
X Flare
20031024.053006.p119s
 05:30
 122
 1233
 -41.7
1.0e+15
No
 Yes


Table 2 - UVCS Observation Sequence

FITS filename
 PA (deg)
 T i (UT)
 Tf (UT)
 Height (Rsun)
 Slit W. (arcsec)
 Exp. Time (sec)
d03.10.24.04:29:06.ovi.dat
 106
 04:29:05
 07:09:05
 1.75
 26
 120
d03.10.24.07:22:55.ovi.dat
 106
 07:22:53
 10:02:53
 1.75
 26
 120
d03.10.24.10:16:35.ovi.dat
 106
 10:16:34
 12:24:34
 1.75
 26
 120

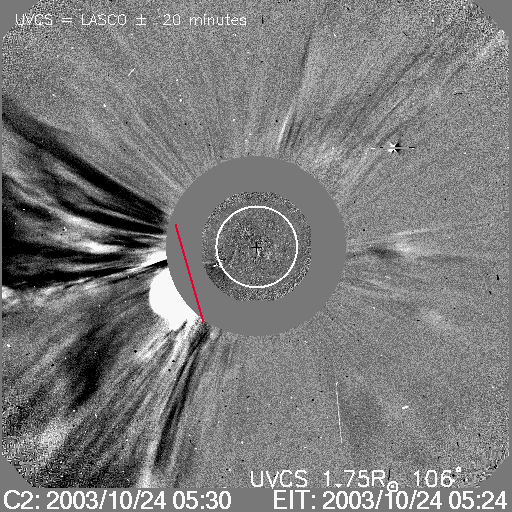

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename
 Wave Min (A)
 Wave Max (A)
d03.10.24.04:29:06.ovi.dat
 1024.00
 1043.20

998.200
 1008.90

991.200
 994.700

967.200
 981.100

943.700
 965.100

1171.80
 1191.60
d03.10.24.07:22:55.ovi.dat
 1024.00
 1043.20

998.200
 1008.90

991.200
 994.700

967.200
 981.100

943.700
 965.100

1171.80
 1191.60
d03.10.24.10:16:35.ovi.dat
 1024.00
 1043.20

998.200
 1008.90

991.200
 994.700

967.200
 981.100

943.700
 965.100

1171.80
 1191.60


Table 4 - UV Properties

First Obs. Max blue-shift (km/sec) Max red-shift (km/sec) Detected at (Rsun) Lines
2003/10/24 05:21 290 1.69 HILyb1026
HILyg973
CIII977
OVI1032
OVI1038
NIII992

Images

Intensity Images

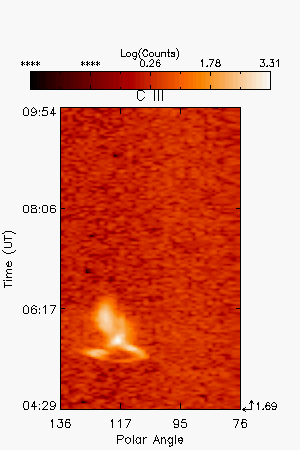

C III 977A Intensity

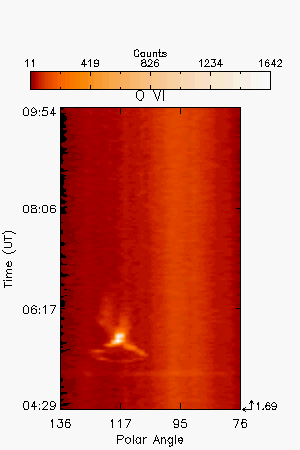

O VI 1032A Intensity


Interpretation

Front Yes
Void No
Shock No
Current Sheet ?
Prominence Yes
Flare O VI Yes
Leg ?
Helix No

Publications

Johnson et al. 2011, ApJ, 735, 70

Comments

A brightening of the O VI lines is detected from 05:03 to 05:14 UT corresponding to the time the X-ray flare occurred. When all the spectra, after the CME ejecta, are summed some [Fe XVIII] 975A emission is detected around PA=130. This may suggest either the presence of a current sheet or the hot emission from post CME loops.

Last Update Wed Oct 10 09:50:39 2012
