CME 20031102
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20031102.173005.p265s |
17:30 |
Halo |
2598 |
-32.4* |
4.9e+15* |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d03.11.02.17:01:47.ovi.dat |
245 |
17:01:46 |
19:41:46 |
1.72 |
26 |
120 |
| d03.11.02.19:55:26.ovi.dat |
245 |
19:55:25 |
22:35:25 |
1.72 |
26 |
120 |
| d03.11.02.22:49:07.ovi.dat |
245 |
22:49:07 |
01:29:07 |
1.72 |
26 |
120 |
| d03.11.03.01:42:54.ovi.dat |
245 |
01:42:53 |
04:22:53 |
1.72 |
26 |
120 |
| d03.11.03.04:36:40.ovi.dat |
245 |
04:36:40 |
07:16:40 |
1.72 |
26 |
120 |
| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d03.11.02.17:01:47.ovi.dat |
1024.00 |
1043.20 |
| 998.200 |
1008.90 |
|
| 991.200 |
994.700 |
|
| 967.200 |
981.100 |
|
| 943.700 |
965.100 |
|
| 1171.80 |
1191.60 |
|
| d03.11.02.19:55:26.ovi.dat |
1024.00 |
1043.20 |
| 998.200 |
1008.90 |
|
| 991.200 |
994.700 |
|
| 967.200 |
981.100 |
|
| 943.700 |
965.100 |
|
| 1171.80 |
1191.60 |
|
| d03.11.02.22:49:07.ovi.dat |
1024.00 |
1043.20 |
| 998.200 |
1008.90 |
|
| 991.200 |
994.700 |
|
| 967.200 |
981.100 |
|
| 943.700 |
965.100 |
|
| 1171.80 |
1191.60 |
|
| d03.11.03.01:42:54.ovi.dat |
1024.00 |
1043.20 |
| 998.200 |
1008.90 |
|
| 991.200 |
994.700 |
|
| 967.200 |
981.100 |
|
| 943.700 |
965.100 |
|
| 1171.80 |
1191.60 |
|
| d03.11.03.04:36:40.ovi.dat |
1024.00 |
1043.20 |
| 998.200 |
1008.90 |
|
| 991.200 |
994.700 |
|
| 967.200 |
981.100 |
|
| 943.700 |
965.100 |
|
| 1171.80 |
1191.60 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2003/10/02 17:12 | 1.67 |
FeXVIII975 OVI1032 OVI1038 SiXII499 SiXII521 |
||
| Images |

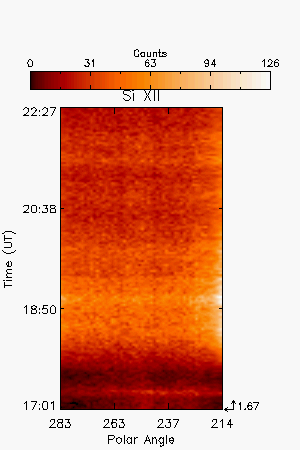

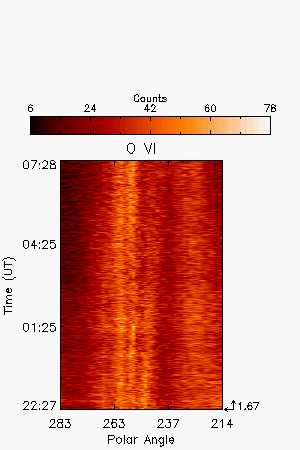

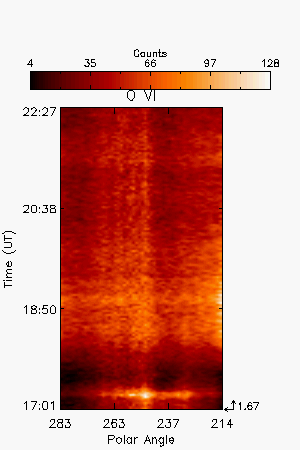

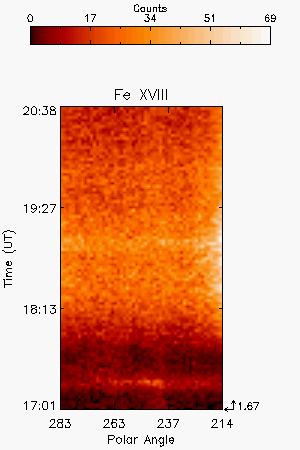

| Intensity Images |
|||||
| Interpretation |
| Front | Yes |
| Void | ? |
| Shock | No |
| Current Sheet | ? |
| Prominence | No |
| Flare O VI | Yes |
| Leg | No |
| Helix | No |
| Publications |
Raymond et al. 2007, ApJ, 659, 750; Johnson et al. 2011, ApJ, 735, 70
| Comments |
The is a narrow feature in Fe XVIII before the CME that most probably is a current sheet from a previous event. Broadening of Fe XVIII around 17:21UT. A narrow feature after the passage of the front is seen in Fe XVIII at PA=242 when few exposures are summed together. Starting at 02:54UT is a dimming of the O VI line between PA 275 and 283 due to the following CME at 01:59UT. High background due to the X-ray flare starting from 17:16UT. Broad OVI lines from 17:25 to 17:29 UT.
