MOVIE of UVCS Slit on LASCO Images
CME 20040511
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20040511.002605.p248g |
00:26 |
232 |
495 |
9.3 |
1.4e+15 |
No |
No |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| s04.05.11.02:14:19.ovi.dat |
270 |
02:14:49 |
03:18:49 |
3.02 |
56 |
120 |
| 03:21:29 |
03:37:29 |
2.21 |
56 |
120 | ||
| 270 |
03:38:33 |
03:44:33 |
2.03 |
56 |
120 | |
| 03:45:17 |
03:53:17 |
1.91 |
56 |
120 | ||
| 270 |
03:54:05 |
03:58:05 |
1.79 |
56 |
120 |

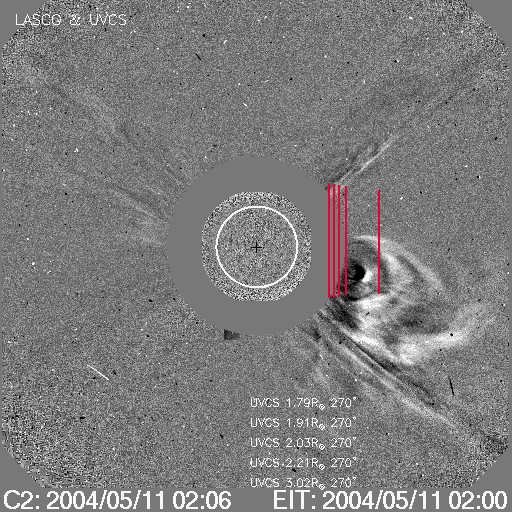

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| s04.05.11.02:14:19.ovi.dat |
1022.80 |
1044.70 |
| 972.800 |
981.500 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2004/05/11 02:14 | 0 | 520 | 3.0,2.09,1.86 |
CIII977 OVI1032 OVI1038 |
| Images |

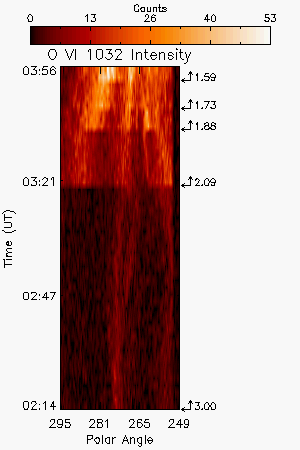

| Intensity Images |
||

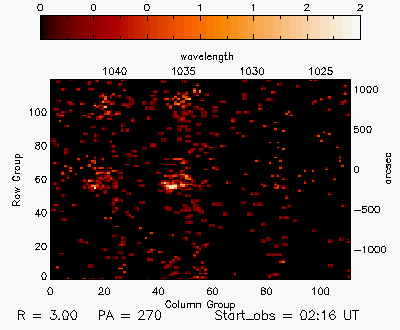

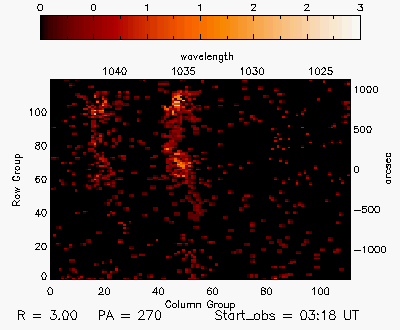

| Plots and more |
|||
| Interpretation |
| Front | No |
| Void | No |
| Shock | No |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | No |
| Leg | ? |
| Helix | No |
Last Update Wed Nov 18 12:26:17 2009
