CME 20040716

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

Table 1 - General Information

Tutorials: UVCS CME Observations pdf / html
UVCS CME Catalog Pages html

CME ID
 Time (UT)
 PA (deg)
 Speed (km/sec)
 Acceleration (m/sec2)
 Mass (g)
 Type II RB
X Flare
20040716.145407.p131s
 14:54
 132
 158
 -12.2*
 -------
Yes
 Yes


Table 2 - UVCS Observation Sequence

FITS filename
 PA (deg)
 T i (UT)
 Tf (UT)
 Height (Rsun)
 Slit W. (arcsec)
 Exp. Time (sec)
s04.07.16.13:07:21.ovi.dat
 90
 13:07:51
 14:11:51
 3.02
 55
 120


14:14:31
 14:30:31
 2.21
 55
 120

90
 14:31:35
 14:37:35
 2.03
 55
 120


14:38:19
 14:46:19
 1.91
 55
 120

90
 14:47:07
 14:51:07
 1.79
 55
 120

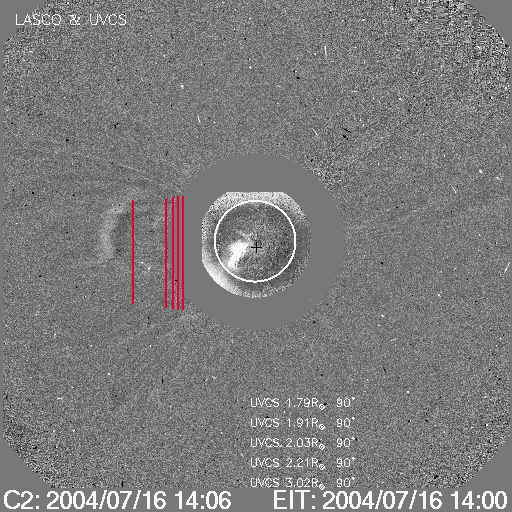

UVCS Slit Position

MOVIE of UVCS Slit on LASCO Images

Table 3 - UVCS Observation Wavelength Range

FITS filename
 Wave Min (A)
 Wave Max (A)
s04.07.16.13:07:21.ovi.dat
 1022.80
 1044.70

972.800
 981.500


Table 4 - UV Properties

First Obs. Max blue-shift (km/sec) Max red-shift (km/sec) Detected at (Rsun) Lines
2004/07/16 13:53 0 0 3.0,2.09,1.88,1.73,1.59 OVI1032
OVI1038

Images

Intensity Images

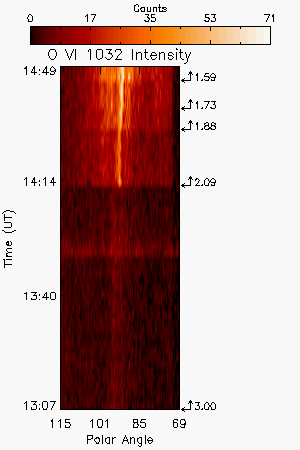

O VI 1032 intensity, background corona not subtracted, showing flare emission at ~13:53 UT followed by ejection of filament material at lower heights


Interpretation

Front No
Void No
Shock No
Current Sheet No
Prominence Yes
Flare O VI Yes
Leg No
Helix No

Last Update Wed Nov 18 12:31:39 2009
