MOVIE of UVCS Slit on LASCO Images
CME 20040727
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20040727.060605.p236s |
06:06 |
233 |
436 |
-6.7 |
5.2e+14 |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d04.07.27.05:19:53.ovi.dat |
270 |
05:32:15 |
08:00:15 |
1.95 |
27 |
120 |
| d04.07.27.08:05:13.ovi.dat |
270 |
08:05:11 |
10:45:11 |
1.95 |
27 |
120 |

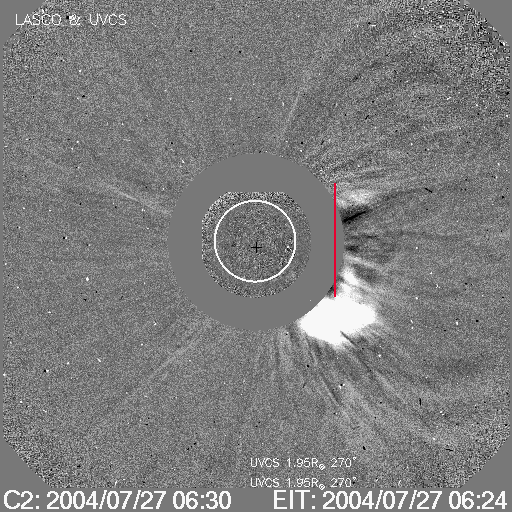

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d04.07.27.05:19:53.ovi.dat |
1022.80 |
1044.70 |
| 972.800 |
981.500 |
|
| d04.07.27.08:05:13.ovi.dat |
1022.80 |
1044.70 |
| 972.800 |
981.500 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2004/07/27 05:40 | 0 | 0 | 1.77 |
OVI1032 |
| Images |

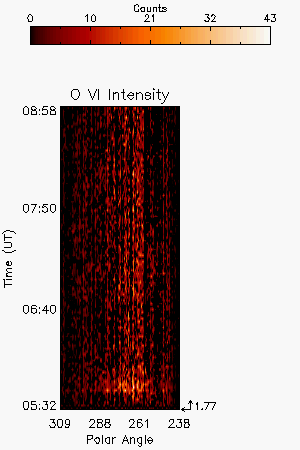

| Intensity Images |
O VI 1032 intensity, background corona subtracted, showing O VI disk flare at around 05:40 UT. |
|
| Interpretation |
| Front | No |
| Void | No |
| Shock | No |
| Current Sheet | No |
| Prominence | No |
| Flare O VI | Yes |
| Leg | No |
| Helix | No |
Last Update Wed Nov 18 12:35:32 2009
