MOVIE of UVCS Slit on LASCO Images
CME 20040728
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20040728.155405.p231s |
15:54 |
226 |
590 |
-23.7 |
5.5e+13 |
No |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d04.07.28.16:23:52.ovi.dat |
270 |
16:23:50 |
17:43:50 |
1.95 |
27 |
120 |
| d04.07.28.17:47:31.ovi.dat |
270 |
17:47:29 |
20:27:29 |
1.95 |
27 |
120 |

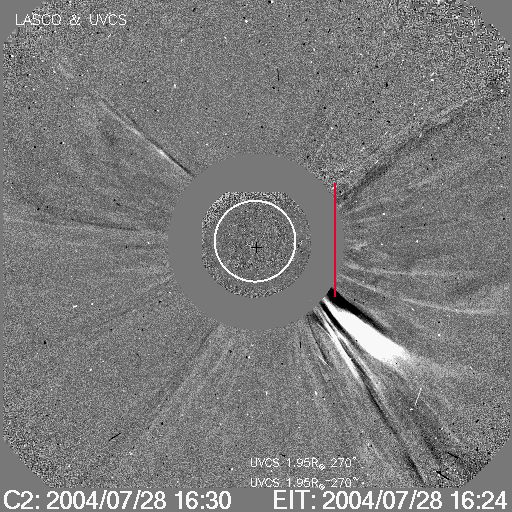

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d04.07.28.16:23:52.ovi.dat |
1022.80 |
1044.70 |
| 972.800 |
981.500 |
|
| d04.07.28.17:47:31.ovi.dat |
1022.80 |
1044.70 |
| 972.800 |
981.500 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2004/07/28 17:21 | 0 | 0 | 1.77 |
CIII977 OVI1032 OVI1038 |
| Images |

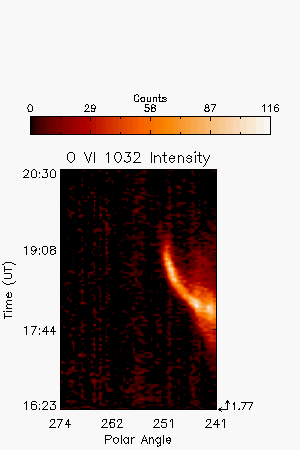

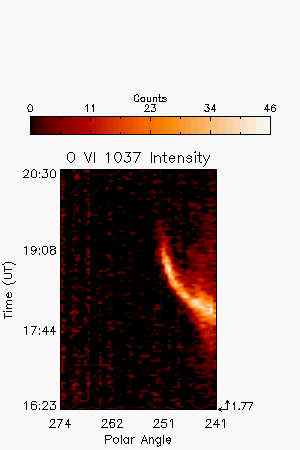

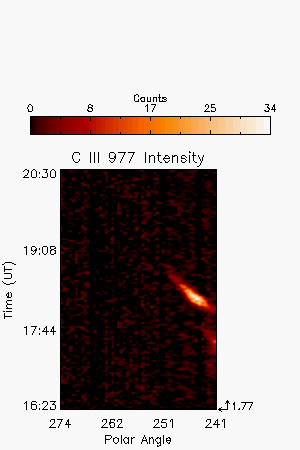

| Intensity Images |
||||
| Interpretation |
| Front | No |
| Void | No |
| Shock | No |
| Current Sheet | No |
| Prominence | Yes |
| Flare O VI | No |
| Leg | ? |
| Helix | No |
