MOVIE of UVCS Slit on LASCO Images
CME 20050120
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| Table 1 - General Information |
| Tutorials: UVCS CME Observations pdf / html | UVCS CME Catalog Pages html |
| CME ID |
Time (UT) |
PA (deg) |
Speed (km/sec) |
Acceleration (m/sec2) |
Mass (g) |
Type II RB |
X Flare |
| 20050120.065405.p288s |
06:54 |
Halo |
882 |
16.0* |
------- |
Yes |
Yes |
| Table 2 - UVCS Observation Sequence |
| FITS filename |
PA (deg) |
T i (UT) |
Tf (UT) |
Height (Rsun) |
Slit W. (arcsec) |
Exp. Time (sec) |
| d05.01.20.03:32:05.ovi.dat |
283 |
03:32:26 |
06:08:55 |
2.38 |
13 |
120 |
| d05.01.20.06:17:25.ovi.dat |
283 |
06:17:46 |
08:57:46 |
2.38 |
13 |
120 |

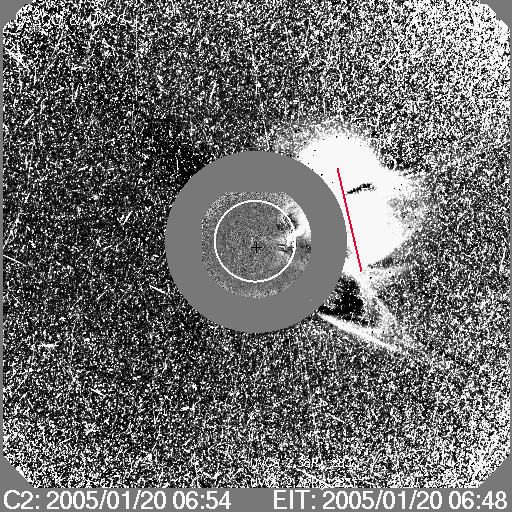

| UVCS Slit Position |
|
MOVIE of UVCS Slit on LASCO Images |
| Table 3 - UVCS Observation Wavelength Range |
| FITS filename |
Wave Min (A) |
Wave Max (A) |
| d05.01.20.03:32:05.ovi.dat |
1072.50 |
1077.70 |
| 1060.70 |
1065.40 |
|
| 996.800 |
1001.80 |
|
| 988.200 |
996.400 |
|
| 1209.60 |
1217.10 |
|
| d05.01.20.06:17:25.ovi.dat |
1072.50 |
1077.70 |
| 1060.70 |
1065.40 |
|
| 996.800 |
1001.80 |
|
| 988.200 |
996.400 |
|
| 1209.60 |
1217.10 |
| Table 4 - UV Properties |
| First Obs. | Max blue-shift (km/sec) | Max red-shift (km/sec) | Detected at (Rsun) | Lines |
| 2005/01/20 06:44 | 2.3 |
HILya1216 | ||
| Images |

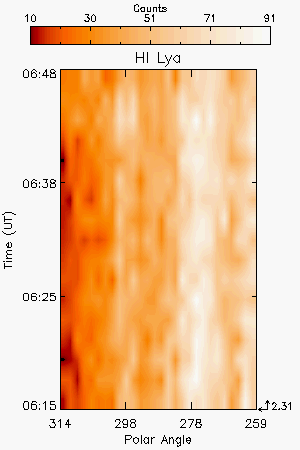

| Intensity Images |
||
| Interpretation |
| Front | No |
| Void | No |
| Shock | No |
| Current Sheet | No |
| Prominence | No |
| Flare O VI | No |
| Leg | No |
| Helix | No |
| Comments |
Ly alpha brightening at 06:44 is probably flare Ly alpha photons scattered from H atoms in the corona, analogous to flare O VI. Signal is wiped out by X-ray and particle background by 06:52.
